Laser Alignment Easy-Laser E720 Shaft / Geometric

For Sale Laser Alignment Easy-Laser E720 Shaft / Geometric. This item Perfect condition and working. Come with warranty 90 days.

The E720 measures base twist, straightness of piping, rolls and shafts, parallelism of surfaces, and flatness and levelness of machine foundations and bases. For shaft alignment, the E720 measures misalignment as well as any soft foot condition.

Laser Alignment Easy-Laser E720 Shaft / Geometric

EASY-LASER E720 WITH LASER TRANSMITTER D22
Machine set-up most often starts with the foundation. If the
foundation is level and flat you will have less problems with the
rest of the installation and alignment of the machine. With Easy-
Laser® E720 you not only get all the functions and features for
the alignment of the machine, but also possibilities to perform
the following:

• • Measure the flatness of the foundation
  • Check plane parallelism for several surfaces on large machines
  • Measure flatness for a single machine foot support surface
  • Align the foundation level and plumb
  • Align pipes straight and square

The measuring units included with system E720 uses point laser
technology. This is one of the reasons it can be used in so many
more places in your operations than just to align the shafts of
rotating machinery.
>Also a standard E710 will provide more measurement and align-
ment possibilities than a line laser system can, but the key to true
versatility is the D22.

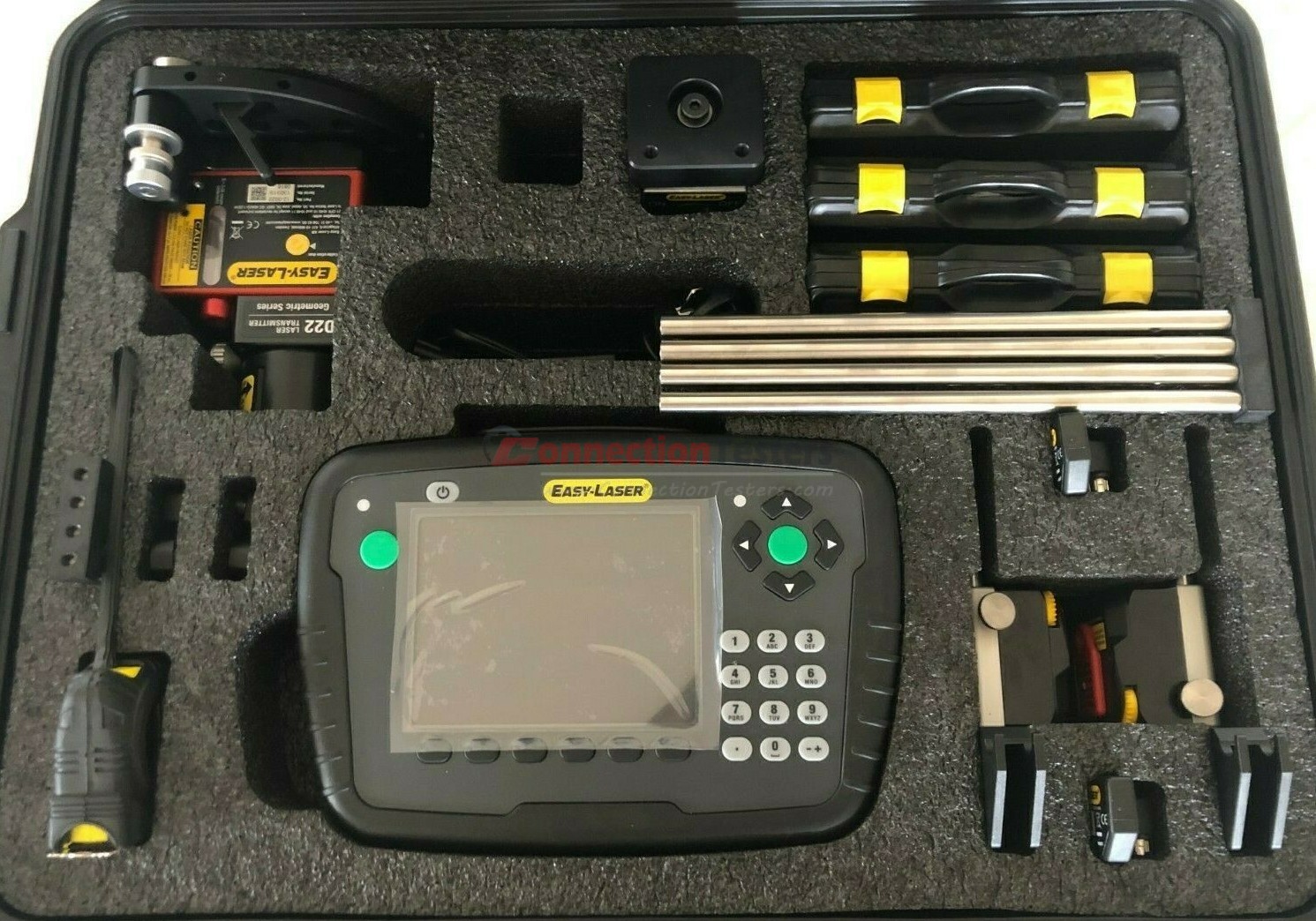

Included :

• • 1 Display unit E51
  • 1 Measuring unit ES
  • 1 Measuring unit EM
  • 2 Wireless units
  • 1 Laser transmitter D22
  • 2 Cables 2 m
  • 2 Shaft bracket with chain
  • 2 Extension chain
  • 1 Magnet base
  • 1 Magnet base with turnable head
  • 2 Offset bracket
  • 2 Magnetic bracket
  • 1 Set of Rods 8×120 mm
  • 1 Set of Rods 4×60 mm
  • 1 Manual (Note: Refers to English manual)
  • 1 Quick manual (Note: Refers to English manual)
  • 1 Measuring tape 3 m
  • 1 USB memory stick with documentation
  • 1 USB cable
  • 1 Battery charger (100–240 V AC)
  • 1 Toolbox
  • 1 Shoulder strap for Display unit
  • 1 Cleaning cloth for optics
  • 1 Carrying case
