Leica BLK360 Colour 360º

For Sale Leica BLK360 Colour 360º Imaging Laser 3D Panoramic Scanner Survey Equipment . Very excellent condition and perfect working.

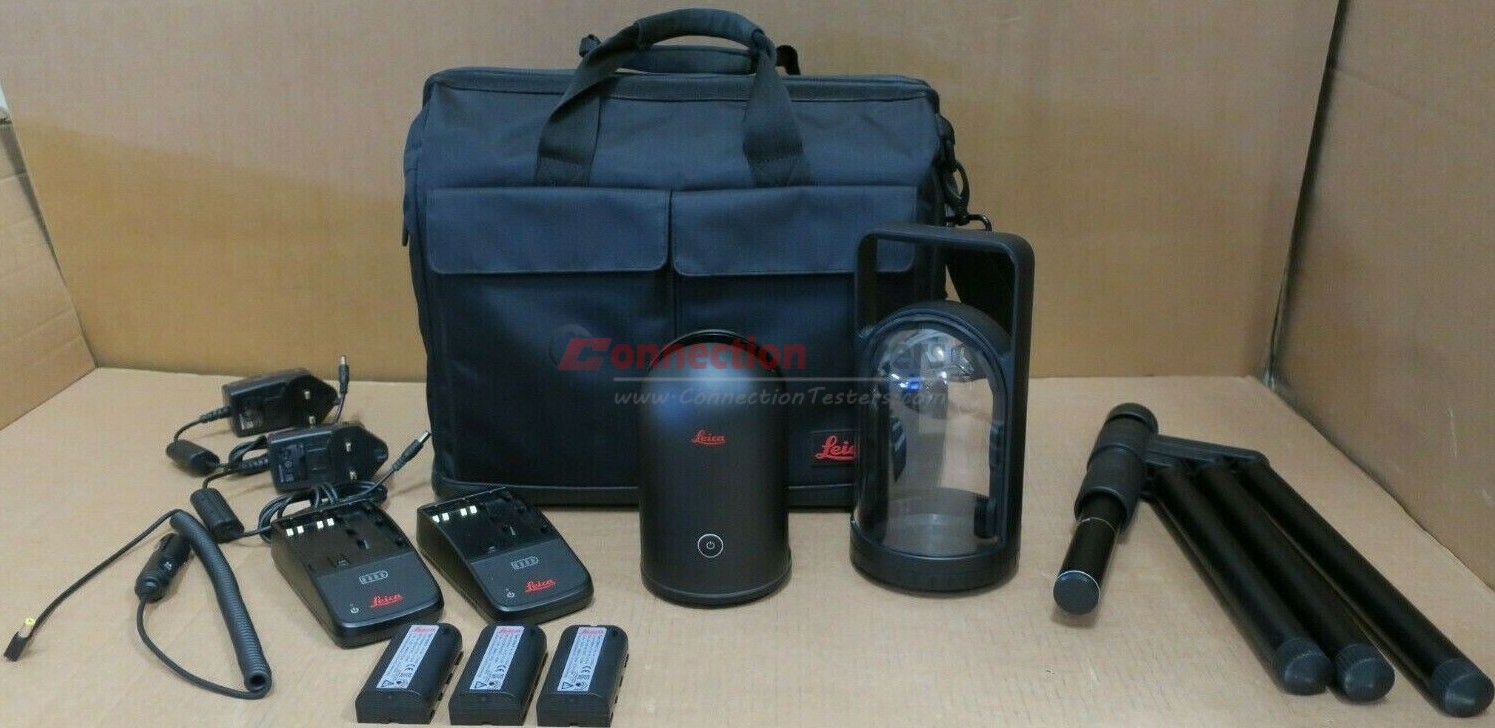

Included :

• • 1 x Leica BLK360 Colour 360º Imaging Laser 3D Panoramic Scanner Survey Equipment Mission Kit
  • 1 x BLK360 Mission bag The Mission bag has convenient segments for the BLK360 and accessories
  • 2 x GEB212 Lithium-Ion Battery
  • 2 x GKL312 Battery Charger
  • 1 x Car charger Lead
  • 1 x BLK360 Tripod, includes the quick release adapter

Leica BLK360 Product Specifications

GENERAL

• • Imaging scanner 3D scanner with integrated spherical imaging system and thermography panorama sensor system

DESIGN & PHYSICAL

• • Housing Black anodized aluminium
  • Dimensions Height: 165 mm / Diameter: 100 mm
  • Weight : 1kg
  • Transport cover : Hood with integrated floorstand
  • Mounting mechanism : Button-press quick release

OPERATION

• • Stand-alone operation : One-button operation
  • Remote operation : iPad app, Apple iPad Pro® 12.9” or 10.5”/iOS 10 or later
  • Wireless communication : Integrated wireless LAN (802.11 b/g/n)
  • Internal memory : Storage for > 100 setups
  • Instrument orientation : Upright and upside down

POWER

• • Battery type : Internal, rechargeable Li-Ion battery (Leica GEB212)
  • Capacity : Typically >40 setups

SCANNING

• • Distance measurement system : High speed time of fl ight enhanced by
  • Waveform Digitizing (WFD) technology
  • Laser class : 1 (in accordance with IEC 60825-1:2014)
  • Wavelength : 830 nm
  • Field of view : 360° (horizontal) / 300° (vertical)
  • Range : min. 0.6 – up to 60 m
  • Point measurement rate : up to 360’000 pts / sec
  • Ranging accuracy : 4mm @ 10m / 7mm @ 20m
  • Measurement modes : 3 user selectable resolution settings

IMAGING

• • Camera System : 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED fl ash Calibrated spherical image, 360° x 300°
  • Thermal Camera : Longwave infrared camera
  • Thermal panoramic image, 360° x 70°

PERFORMANCE

• • Measurement speed : < 3 min for complete fulldome scan, spherical image & thermal image
  • 3D point accuracy : 6mm @ 10m / 8mm @ 20m

ENVIRONMENTAL

• • Robustness : Designed for indoor and outdoor use
  • Operating temperature : +5 to +40° C
  • Dust/Humidity : Solid particle/liquid ingress protection IP54 (IEC 60529)

DATA ACQUISITION

• • Live image and scanned data streaming
  • Live data viewing and editing
  • Automatic tilt measurements
