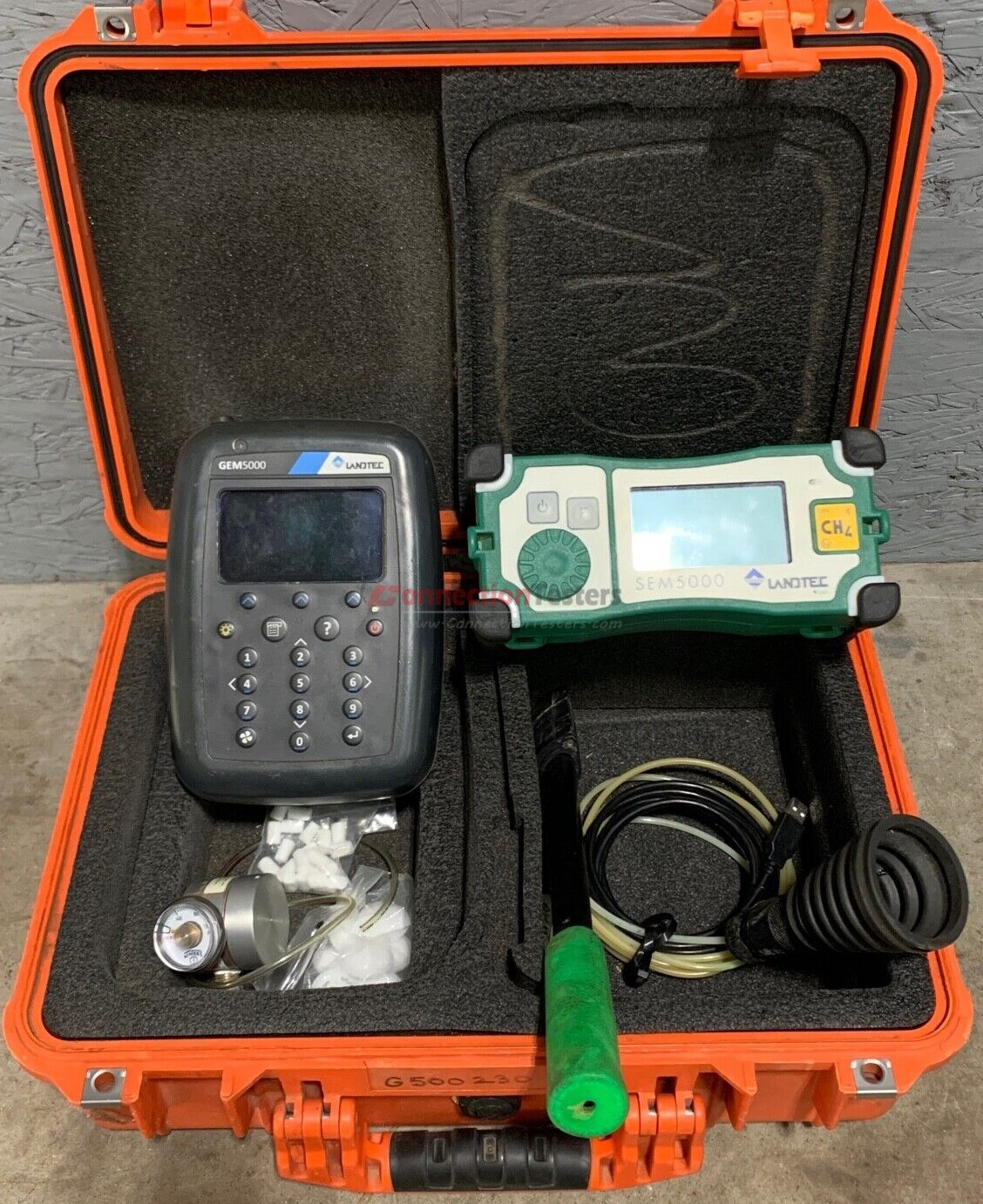

Landtec GEM 5000 Series & SEM 5000 Portable

For Sale Landtec GEM 5000 Series & SEM 5000 Portable Landfill Gas Analyzer W/Accessories. Excellent condition with fully tested and function.

The LANDTEC GEM 5000 and SEM 5000 are complementary, intrinsically safe instruments built specifically for landfill compliance and maintenance. The GEM 5000 monitors extraction well gases (Methane, CO2, O2, plus H2S/CO on Plus models), while the SEM 5000 is a laser-based methane detector built for surface emissions surveys.

GEM 5000 Portable Landfill Gas Analyzer

Core Specifications:

• • Gases Measured : CH₄ (Methane), CO₂ (Carbon Dioxide), O₂ (Oxygen) as standard.
  • Optional Gases : CO (Carbon Monoxide), H₂S (Hydrogen Sulfide) on Plus models.
  • Accuracy : ± 0.5% after calibration for CH₄ and CO₂.
  • Pressure / Flow Measurement : Measures static and differential pressure; calculates gas flow (SCFM) and calorific value.
  • Operating Temp : 14°F to 122°F (-10°C to +50°C).
  • Power & Battery : Up to 8 hours of typical use; charge time ~4 hours.
  • Certifications : Certified intrinsically safe for landfill environments; ISO/IEC 17025 calibrated.
  • Data & Extras : Bluetooth, optional GPS, and compatible with LSGAM software.

SEM 5000 Portable Methane Detector

Core Specifications :

• • Technology : Proprietary Tunable Diode Laser Absorption Spectroscopy (TDLAS) – highly selective to methane.
  • Detection Range : 0.5 ppm to 100% volume.
  • Response Time : Less than 2 seconds.
  • Data Storage : Stores up to 480 hours of scan data.
  • Weight & Ergonomics : Lightweight (2.9 lb / 1.3 kg) with a single-dial selector.
  • Compliance : Meets EPA Method 21 requirements.
  • Battery & Power : “Hot swappable” lithium-ion battery with ~ 10 hours of life at 68°F (20°C).
  • Certifications : ATEX Zone 1 certified.
