ANRITSU MT9081G 01/02/08/10/11 Access master OTDR

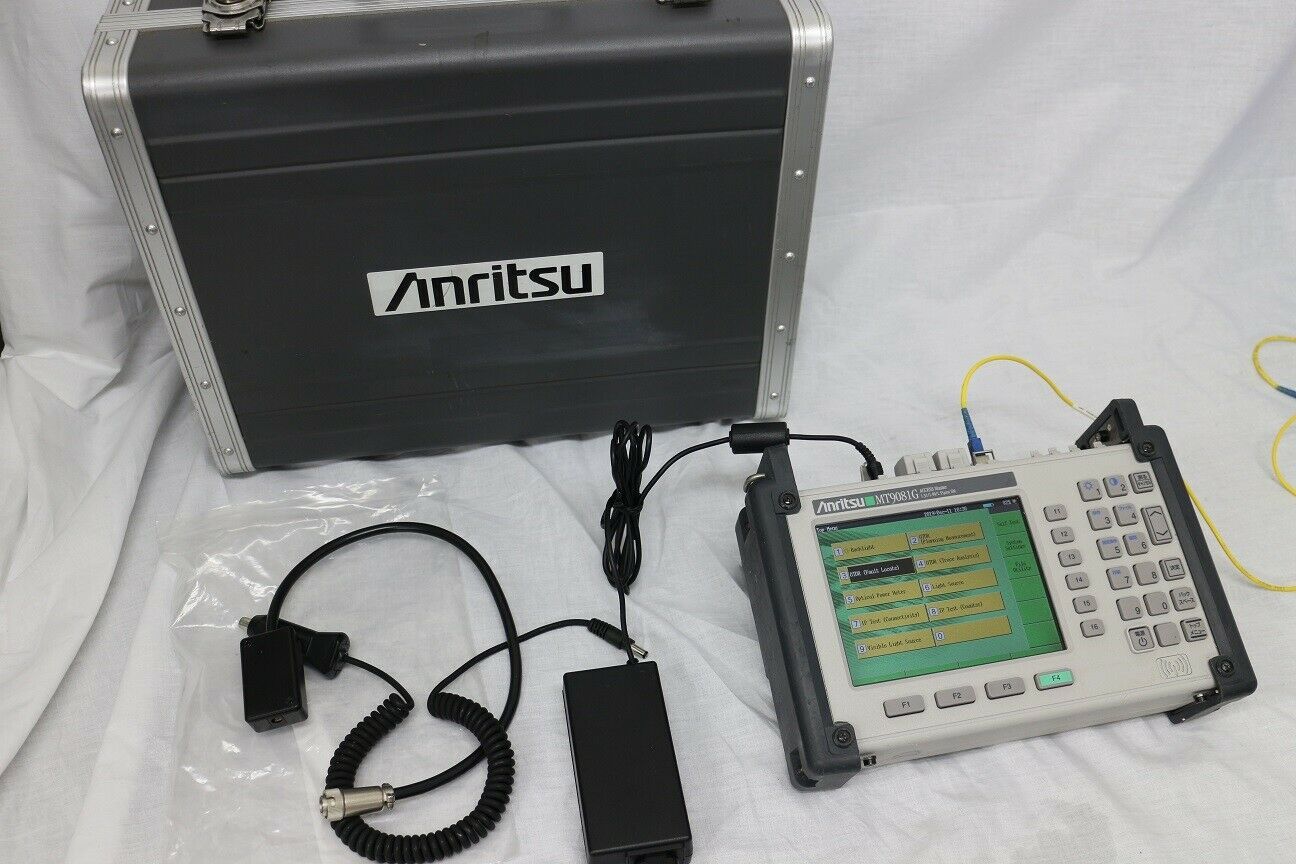

For Sale ANRITSU MT9081G 01/02/08/10/11 Access master OTDR. This unit is in excellent condition, has been fully tested and is guaranteed functional.

Description :

• Wavelength 1.31/1.49/1.55 ±30 nm
• Measurable optical fiber 10/125μm SM fiber(ITU-T G.652
• Distance range 0.5, 1, 2.5, 5, 10, 25, 50, 100, 200 km
• Pulse width 3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 4 μs, 10 μs, 20 μs
• Dynamic Range 36.5 dB (1.31μm) 34.5 dB (1.49μm)34.5dB(1.55μm)
• Marker resolution 0.05 to 400 m
• Sampling resolution 0.05 to 40 m
• Sampling points Normal: 5001High density: 20001 or 25001*9
• Y-axis scale 0.05, 0.125, 0.25, 0.5, 1.25, 2.5, 5, 6.5 dB/div
• IOR settings 1.000000 to 1.999999 (0.000001 steps)
• Distance measurement accuracy ±1 m ±3 × measurement distance × 10–5 ±marker resolution (excluding uncertainty caused by fiber IOR)
• Loss measurement accuracy (linearity) ±0.05 dB/dB or ±0.1 dB (whichever is greater)
• Display 6.4 inch color, TFT-LCD (MT9081x, 640 × 480 dots, with backlight)
• Interface USB 1.1
• Interface Type A × 1 (memory), Type B × 1 (USB mass storage class):
• Battery operating time Continuous operation time: 6.5 h Battery charging time ≤3 h
• Dimensions and mass 277 (W)× 199 (H)× 80 (D) mm ≤2.9 kg
