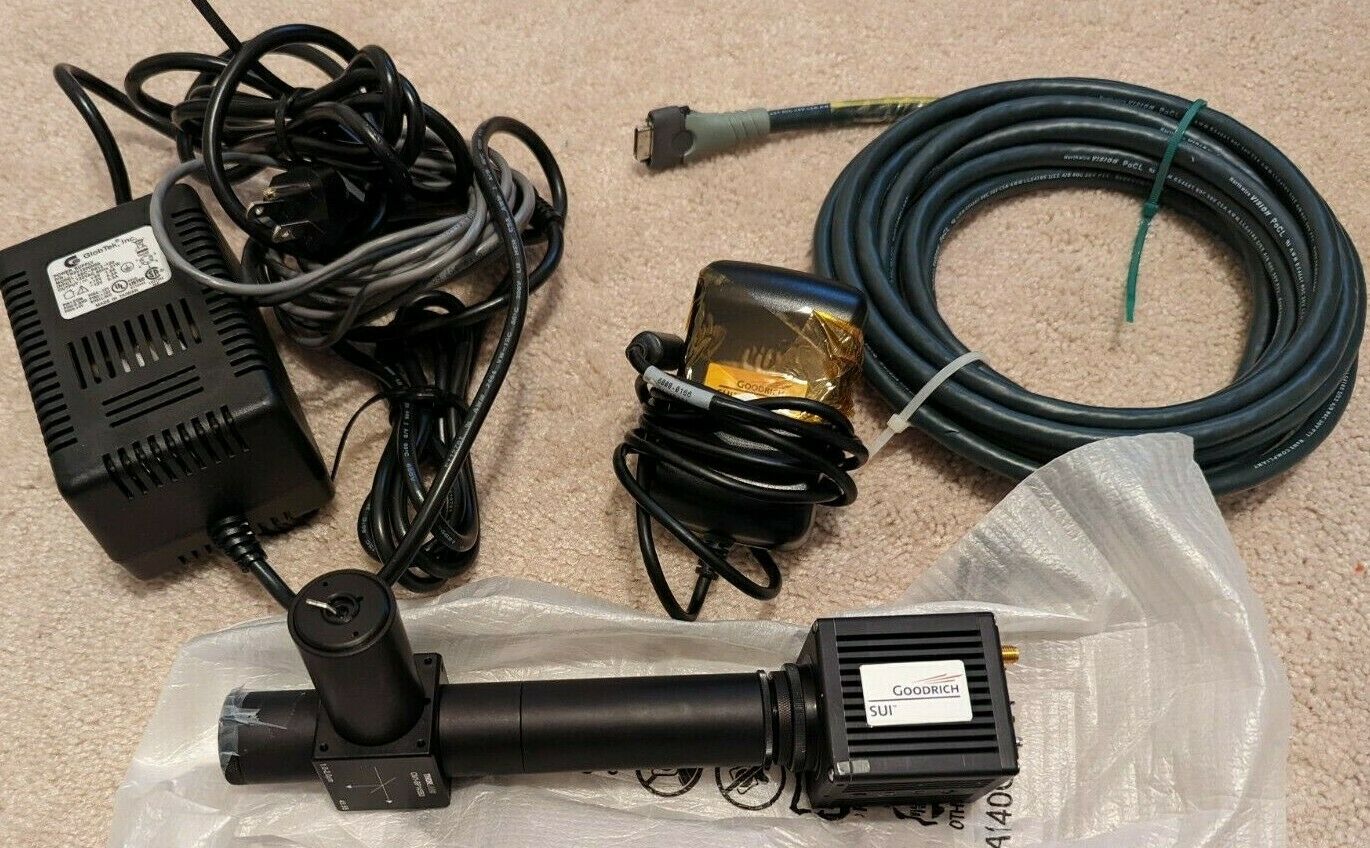

Goodrich Sensors High Sensitivity InGaAs SWIR Camera

For Sale Goodrich Sensors High Sensitivity InGaAs SWIR Camera. Function tested the unit and found it to be fully functional with good cosmetic condition.

APPLICATIONS

• • Low-light level imaging
  • Covert surveillance with passive 24 hr/7 day operation
  • Emission microscopy
  • Imaging spectroscopy
  • Astronomy

FEATURES

• • Highest sensitivity available in 0.9 to 1.7 µm spectrum; NIR/SWIR, from 0.7 to 1.7 µm
  • Images under partial starlight to direct sun illumination
  • 640 x 512 pixel format, 25 µm pitch
  • Compact OEM module size < 3.94 in3
  • Enclosed module size < 9.5 in3
  • Low power < 2.7 W at 20ºC
  • All solid state InGaAs imager
  • On-board non-uniformity corrections
  • Simultaneous digital & analog outputs
  • Room temperature FPA operation
  • Includes a threaded 42 mm lens mount
  • Easy integration into UAV, handheld or robotic systems
  • Adjustable contrast enhancement mode and AGC thresholds
  • Optional OEM startup kit includes full I/O connectors, ¼-20 tripod mount, AC power supply, BNC cables, 50 mm M42-mount SWIR optimized lens
