FLIR U7000 Airborne Ultra 7000 Thermal Imager Infrared Camera

Condition: Used
Brand: Flir

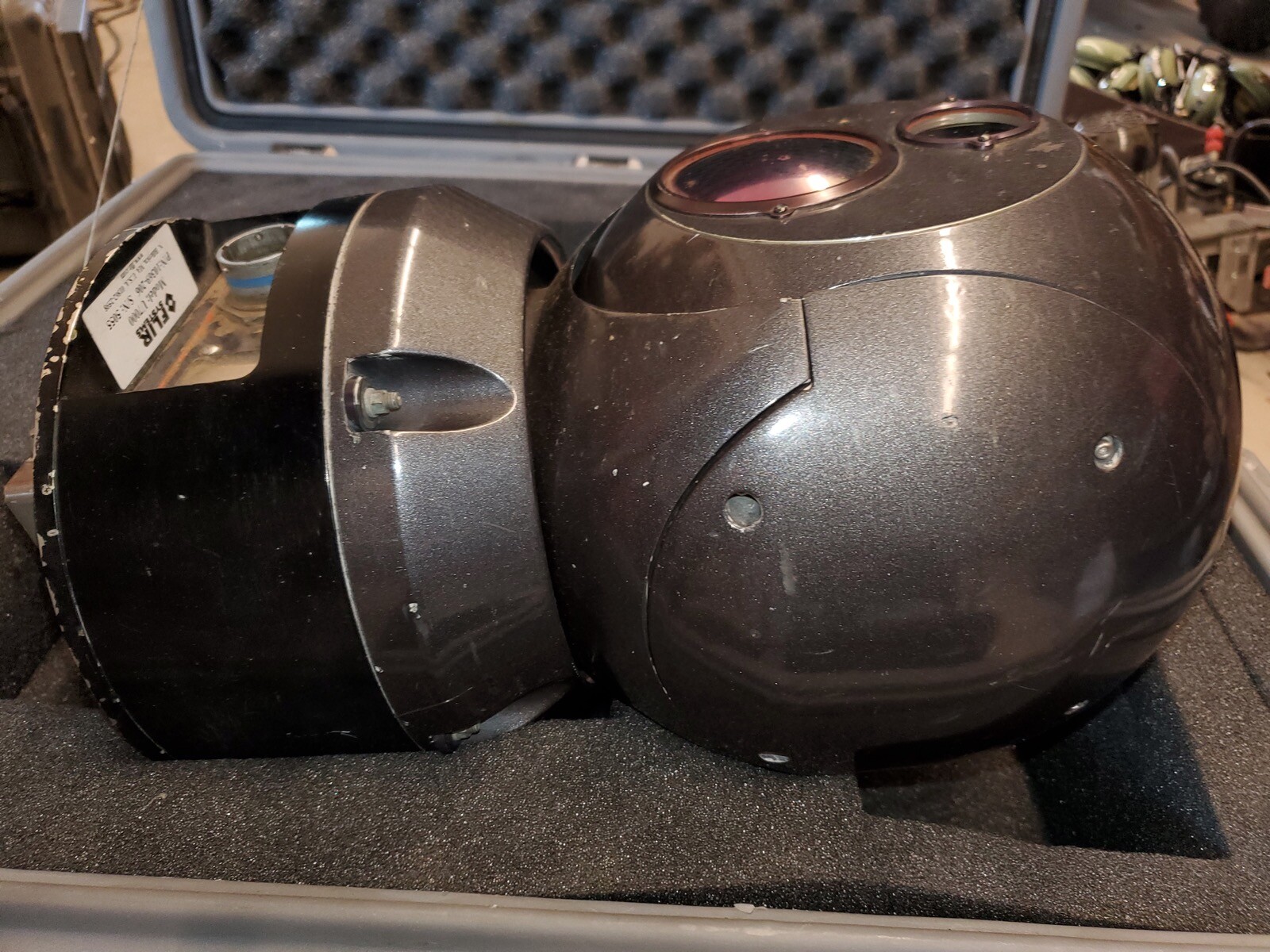

FLIR U7000 Airborne Ultra 7000 Thermal Imager Infrared Camera
Up for auction is a FLIR Ultra 7000 thermal imager. This unit was recently pulled from service and is in good working/physical condition. The IR camera cool down time is less than 10 minutes.

SYSTEM SPECIFICATIONS:
Turret Size9.0” dia. x 13.5” h (22.9 x 34.3 cm)
Turret Weight26 lbs. (11.8 kg)
Field of Regard360o continuous in Azimuth and Elevation
Slew Rates0o to 50o both axes
StabilizationFiber optic gyros, two axes

THERMAL IMAGER:
Sensor256 x 256 InSb FPA 3-5µm
Fields of View17.6o – 1.76o horizontal, 10:1 continuous zoom
CalibrationAuto calibration

ELECTRONIC CONTROL UNIT:
Size9.85” x 5.50” x 8.00” (24.21 x 10 x 20.32 cm)
Weight9.1 lbs (4.13 kg)
Power Requirements18VDC to 32VDC input
Max Current Requirements15 amps
Communications RS232/422
Video OutputFou

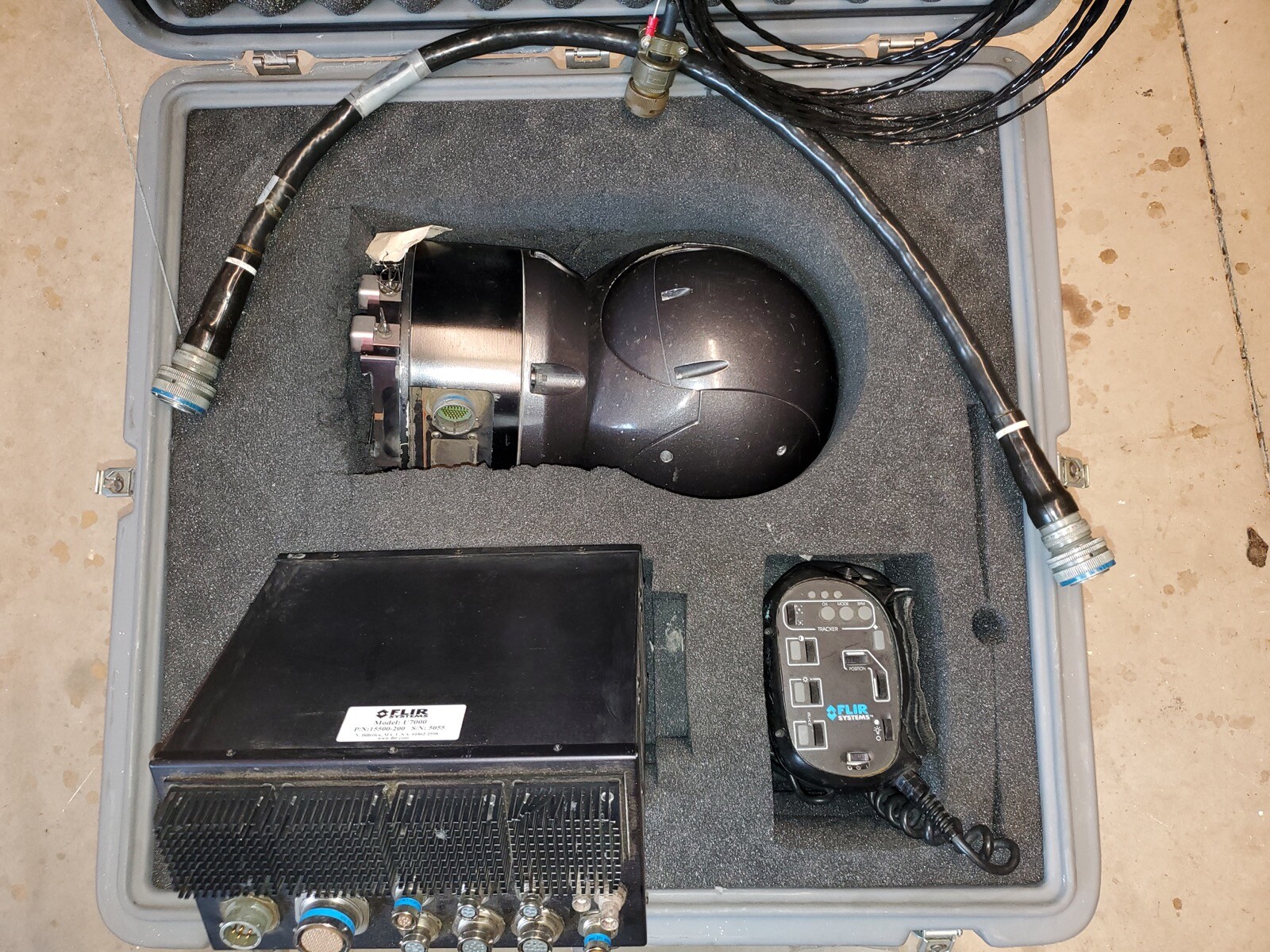

Includes:
Ultra 7000 Imager
Electronic Control Unit
Gimbal Cable
Power Cable
CD copy of Operators Manual
Shipping case
