ASM 180 td Alcatel 797671 Helium Leak Detector

For Sale ASM 180 td Alcatel 797671 Helium Leak Detector. This unit is in excellent condition, has been fully tested and is guaranteed functional.

Specifications for ASM 180 TD (797671) :

• Type: Dry Helium Leak Detector (Oil-free).
• Pumping System: Hybrid turbomolecular pump combined with an oil-free frictionless dry primary roughing pump.
• Helium Pumping Speed at Inlet: 4.4 l/s.
• Startup Time: $\sim$3 minutes.
• Test Modes: Sniffer mode, gross leak test mode, and fine leak test mode.
• Weight: $\sim$153 – 160 lbs (70-73 kg).
• Included Components (797671): Often includes a PTM 5154 turbomolecular pump.

Key Features :

• Dry Operation: Ideal for semiconductor, medical, and specialized industrial applications where oil contamination cannot be tolerated.
• Robustness: Suitable for harsh, high-duty-cycle industrial environments.
• User Interface: Features an easy-to-use operator interface with automatic calibration.

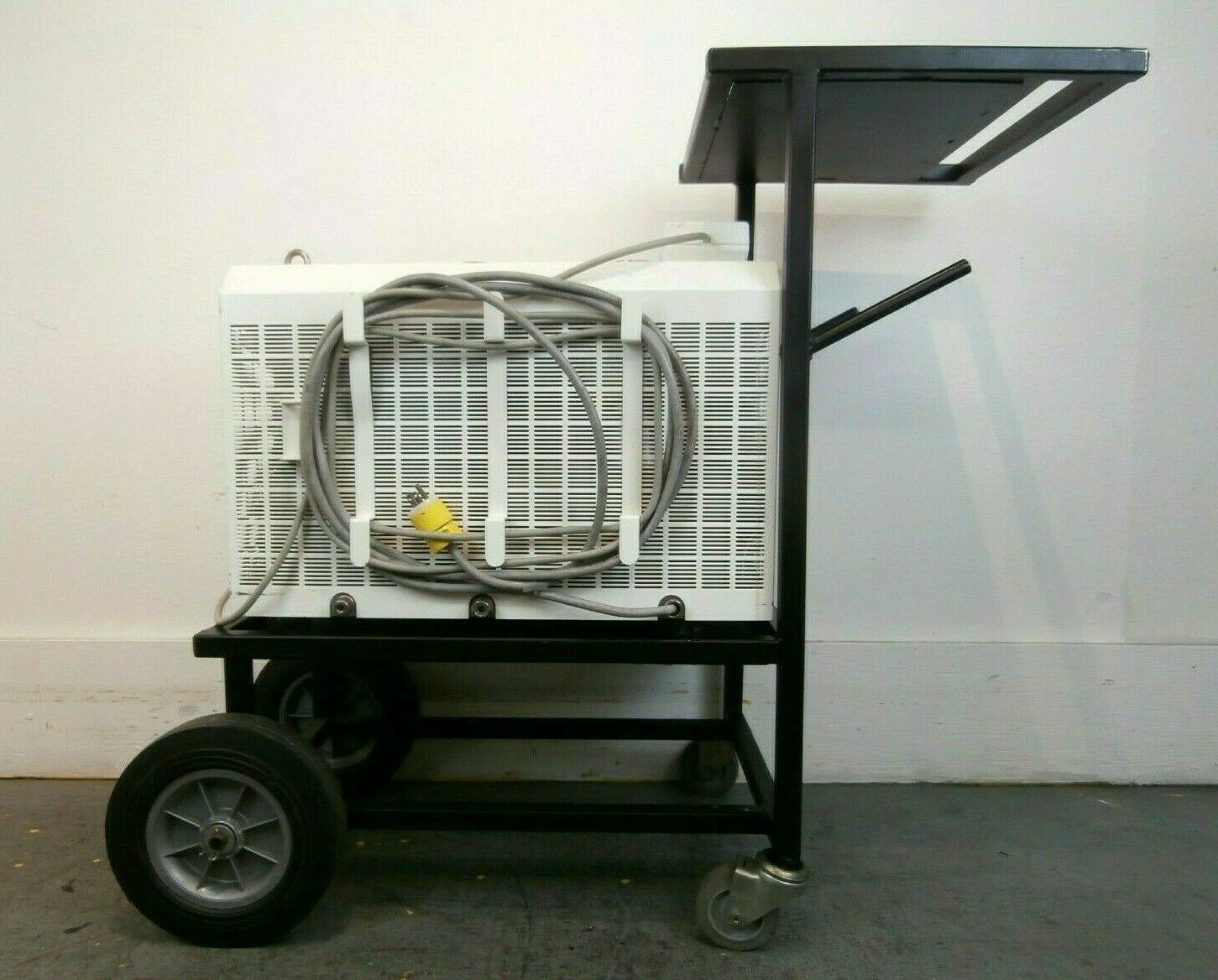

• Portability: Typically mounted on a cart (sometimes portable console only).
