3M EM EYE CTM048

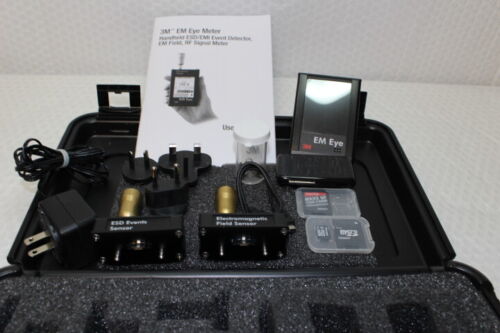

For Sale 3M EM EYE CTM048 Electromagnetic Field & ESD Event Meter. This item used but in a good condition and excellent working.

Specifications

• Dimensions 65 mm (W) x 32 mm (D) x 105 mm (H)
• Screen Color LCD Touch Screen with modern interface
• Data Storage MicroSD card slot for data logging
• Audio Built-in speaker (Beep/Analog audio) & 3.5 mm Headphone Jack
• Battery Built-in Lithium-Ion (Rechargeable)
• Power Input 100-240V ~ 50-60 Hz (Output: 5.0V 1000mA)

Modular Sensor Capabilities

• ESD Event Sensor (CTC021):
  • Detection: Counting and measuring the magnitude of ESD events.
  • Estimation Model: Using algorithms to estimate the stress of CDM, HBM, and MM models.
  • Input Resolution: 1mV (for 1mV-15mV range); 15mV (for 15mV-1500mV range).
  • Distance Range: 1.3 cm to 38.1 cm (0.5 – 15 inches).
• Electromagnetic Field Sensor (EMI/EMF – CTC028):
  • Function: Converts units to power density meter and EIRP meter.
  • Peak Range: 0.001 V/m to 20.00 V/m.
  • EIRP range: 0.001W to 5333 W.
• RF Signal Sensor (CTC029):
  • Frequency Bandwidth: 1 MHz to 2.5 GHz.
  • Dynamic Range: -55 dBm to 0 dBm.
  • Mode Units: dBµV, dBm, mV.
