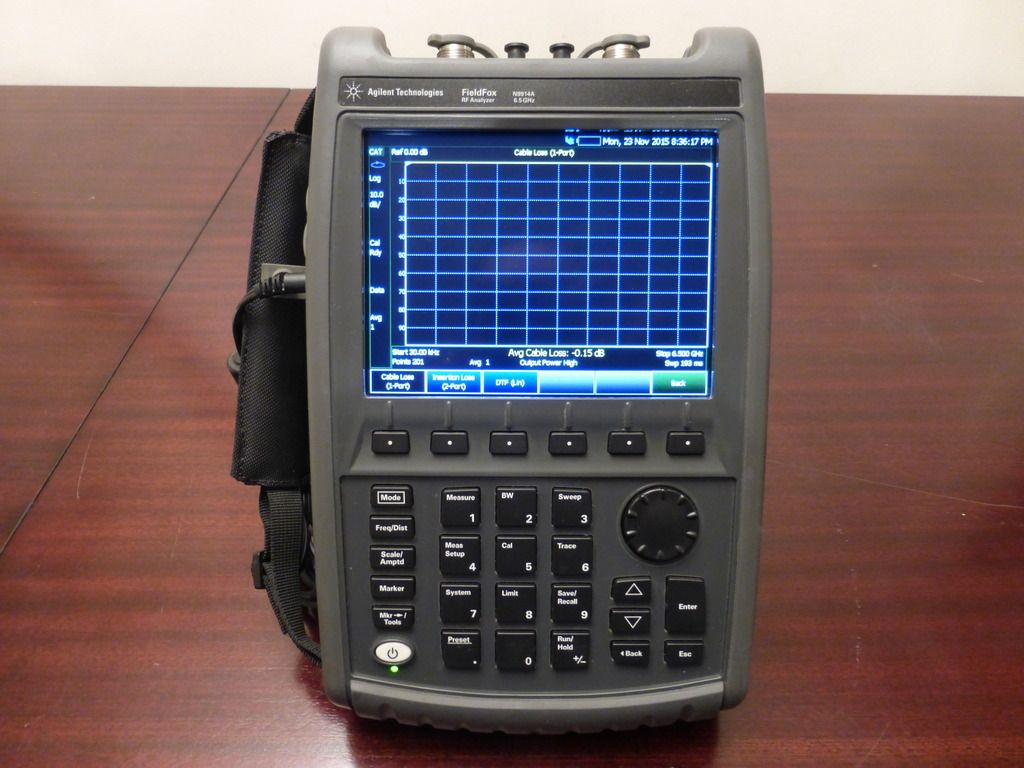

Agilent N9914A 30 kHz to 6.5 GHz

For Sale Agilent N9914A 30 kHz to 6.5 GHz FieldFox RF Vector Network / Spectrum Analyzer. This unit is in excellent condition and has been fully tested.

Features :

• Cable and antenna analyzer (CAT), vector network analyzer (VNA)
• 30 kHz to 6.5 GHz
• CAT : Distance-to-fault, return loss, cable loss
• VNA dynamic range : 100 dB to 6.5 GHz
• VNA : S11, S21, S22, S12, magnitude and phase
• Spectrum analyzer
• 5 kHz to 6.5 GHz
• 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55 C (14 to 131 F)
• Spur-free dynamic range: = 105 dB
• Full-band tracking generator
• Independent source, vector voltmeter (VVM), power and pulse measurements
• RF source : 30 kHz to 6.5 GHz, CW, CW coupled, and tracking
• VVM: 30 kHz to 6.5 GHz, compare phase and electrical length
• Average power, peak power, and pulse characterization with USB power sensors
• Built-in power meter : 5 kHz to 6.5 GHz
• FieldFox instrument attributes
• Remote control via iPad or iPhone
• Battery life: 3.5-hours ; weight: 3.0 kg or 6.6 lbs
• Operating temperature: -10 to +55 C (14 to 131 F)
