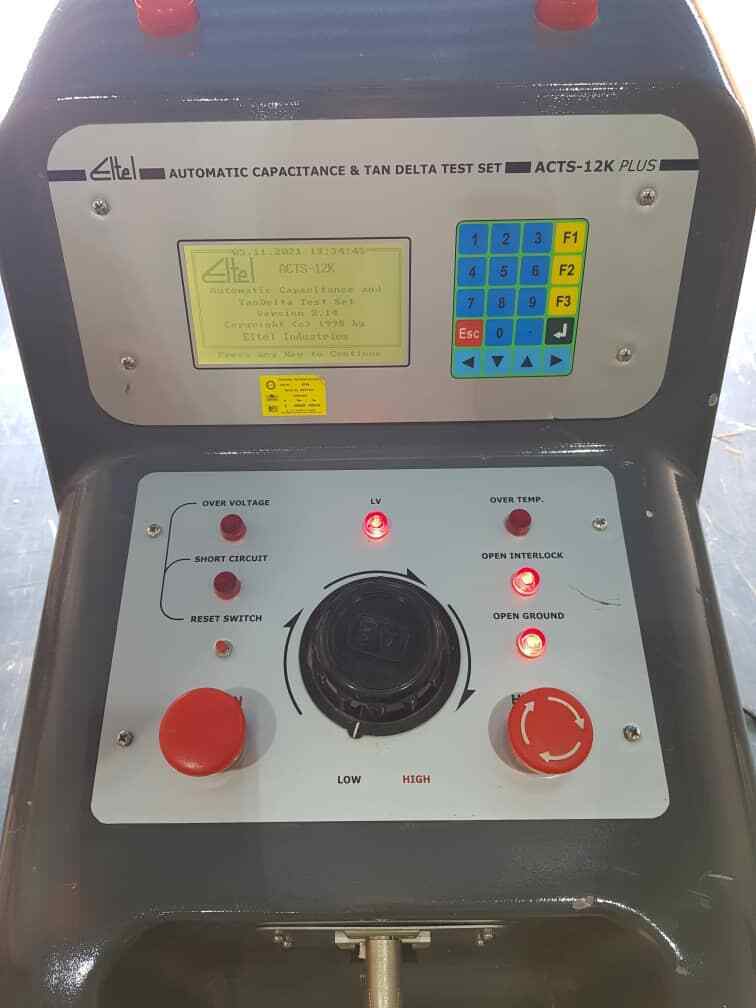

Eltel industries ACTS-12K Automatic Capacitance

For Sale Eltel industries ACTS-12K Automatic Capacitance and Tan Delta Test Set. This unit is in excellent condition, has been fully tested.

Features :

• • Aesthetically designed Single Unit consisting of Measuring Bridge, Power Supply with in-built Standard Capacitor. Ideal for field/ portable applications.
  • Highly compact & Portable – Approx 66Kgs only.
  • Advanced Protection Circuitry – specially suitable for 400kV s/s applications.
  • Successfully passed all required EMI/EMC Tests at SAMEER Chennai IEC 61000-4-2;IEC 61000-4-3; IEC 61000-4-4;IEC 61000-4-5; IEC 61000-4-11;
  • Improved Plug-in type of “Power In” and “Gnd” connectors.
  • Preo 2 Stage RF Power line Filters incorporated for230V Power Input and
  • Bridge Power Input for improved EMI Power line Protection.
  • Improved 2 sets of LV measuring cables.
  • Improved Ultra durable, double shielded PVC HV cable for rugged field use.
  • Larger diameter Teflon ring on the HV Cable at specimen end – thus increasing distance betweenHV & Guard/Gnd points & greatly minimizingshorting possibilities.
  • Improved front panel sensing type keypad – whenkeys are pressed, they can be sensed – thus avoiding keys being pressed twice.
  • USB Printer Interface for printer connectivity.
  • Conveniently located user controls – including “HV ON” indicating Lamp which is visible from a distance.
  • Front Panel based Test Set. Laptop/ PC not neededfor routine operation.
  • Alphanumeric characters & Temperature entry from front panel keypad.
