BIRD SIGNALHAWK SH-36S RADIO RF SPECTRUM

For Sale BIRD SIGNALHAWK SH-36S RADIO RF SPECTRUM ANALYZER 100KHZ TO 3.6GHZ . This unit is in excellent condition, has been fully tested.

SPECTRUM ANALYZER SPECIFICATIONS

• Frequency Range 100 kHz to 3.6 GHz
• Frequency Resolution 1 Hz
• Frequency Uncertainty ± 1 ppm
• Reference Aging ± 1 ppm / year
• Temperature Drift ± 1 ppm / °C
• Data Points 705 displayed
• Spectral Purity –85 dBc @ 30 kHz
• Sweep Time 2.2 s, full span; 1 ms, zero span
• Resolution Bandwidth 100 Hz to 1 MHz RBW
• Video Bandwidth 10 Hz to 300 kHz VBW
• Amplitude Accuracy ± 1.0 dB typ, ± 1.5 dB max
• Dynamic Range 66 dB, intermod-free
• Noise Floor –135 dBm DANL
• Attenuator 0, 10, 20, or 30 dB; internal
• Pre-Amplifier +24 dB gain, internal
• Single-Button ACPR,
• Measurements Demod, C/I
• Occ BW, Channel Power, Field
• Strength, AM/FM

SIGNALHAWKTM SPECIFICATIONS

• Display 8.4”, TFT, 800 x 600 pixel
• Battery 5.5 hour, field replaceable
• Drop Test 1 meter per EN 61010-1
• Transit Drop Test 10 drops per MIL-PRF-28800F
• Explosive Atmosphere Per MIL-PRF-28800F 4.5.6.3
• CE Compliant Yes
• RF Input, N(F) +20 dBm (100 mW) max
• USB Connectivity PC; USB drive and accessories
• Size and Weight 11.5” x 10.5” x 3.8”, 7.8 lbs
• Saved Trace Storage 300 internal; 90,000 USB drive
• Win CE Viewers Word, Excel, PPT, PDF, Image
• Power Meter 5012, 5010B, 5010T, 5011, 5011-EF, 5016 and
  5017 External Sensors, Optional

VNA SPECIFICATIONS

• Frequency Range 1.6 MHz to 3.6 GHz
• Frequency +/-2 ppm uncertainty, 40 kHz res
• Data Points 705 default, 12 to 11265 selectable
• Sweep Time 0.6 s with 705 data points
• RF Output, N(F) -40 dBm to +10 dBm, 1 dB steps
• Interference Immunity +13 dBm on frequency
• Directivity -42 dB calibrated
• 1-Port VNA Measurements Match (VSWR & Return Loss dB) Distance-to-
  Fault (DTF), Cable Loss
• 2-Port VNA Loss/Gain -90 to +50 dB, 12/24 V Int Bias-Tee
• 2-Port VNA Measurements Gain & Loss (Amplifier Gain,
  Insertion Loss, Antenna Isolation)

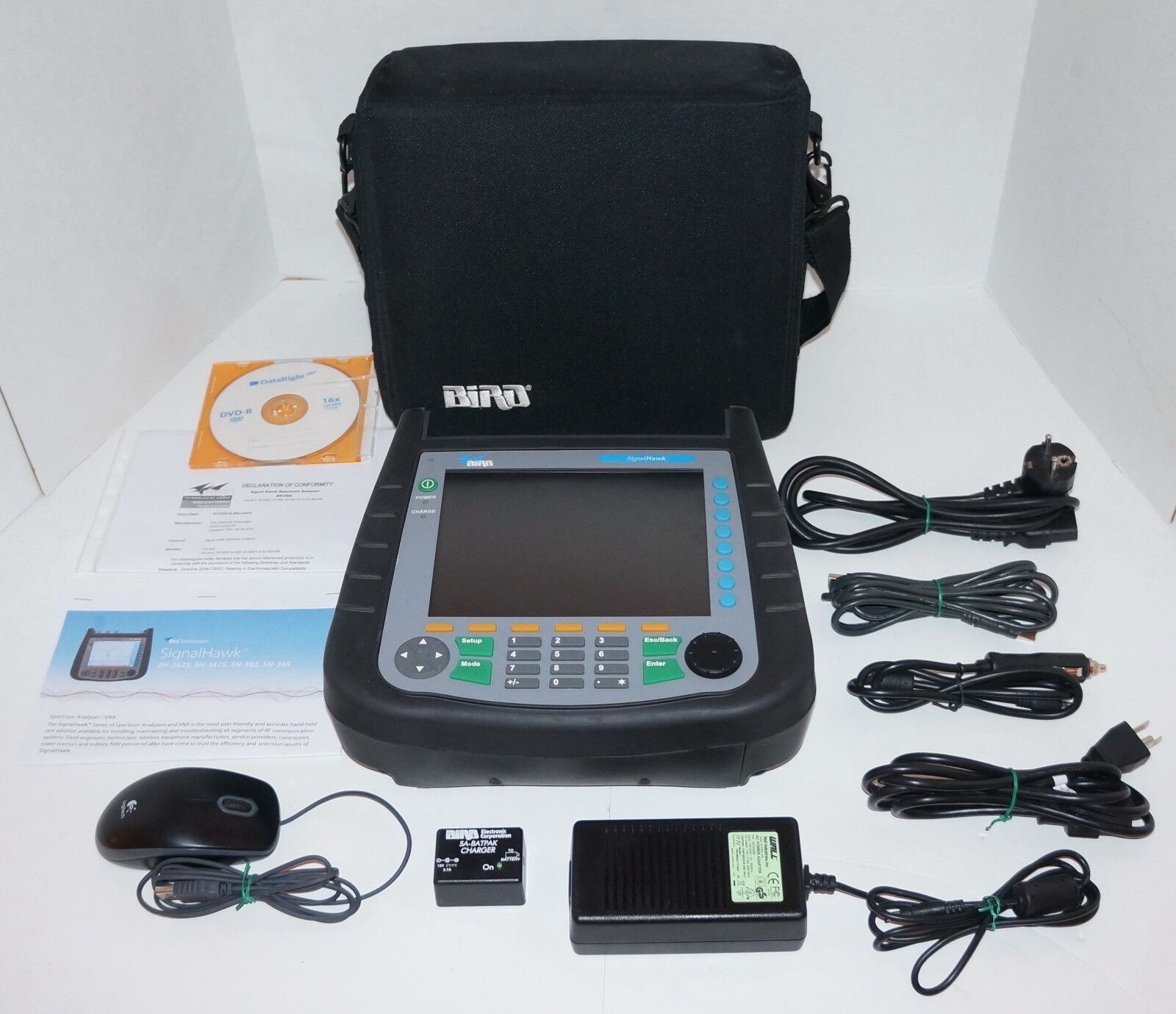

MODEL / STANDARD ACCESSORIES

• PS Operators Manual
• Start-Up Instructions
• USB Cable, 10 ft, USB A (M) to USB B (M)
• AC Adapter/Charger
• Car Adapter/Charger
• Internal Li-Ion Battery, Field Replaceable
• PC Tool Software and Manual CD’s
• USB Drive, Win CE Compatible
