Agilent HP E4402B ESA-E 9 kHz to 3 GHz Spectrum

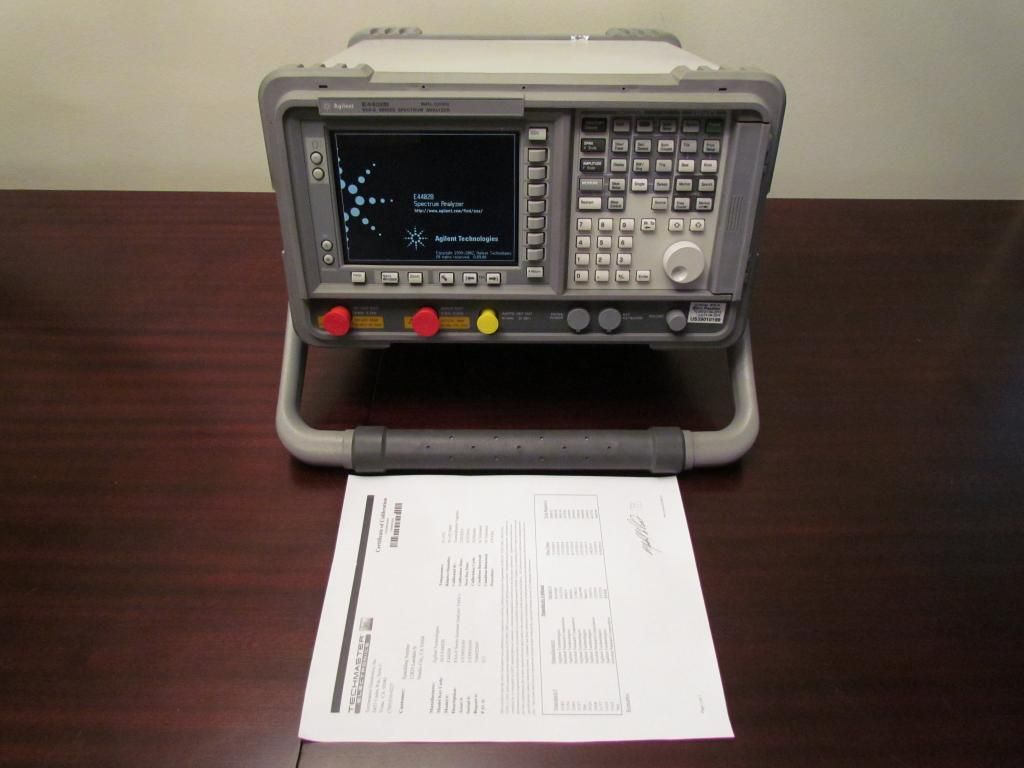

For Sale Agilent HP E4402B ESA-E 9 kHz to 3 GHz Spectrum Analyzers. This unit is in excellent condition, has been fully tested and is guaranteed functional.

SPECS :

Performance

• 0.4 dB overall amplitude accuracy
• +16 dBm TOI
• -166 dBm DANL, with internal preamp
• 1 Hz narrow resolution bandwidth (optional)
• Measurement Application Software
• Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
• Agilent’s PowerSuite one-button power measurements as standard

Features

• 10 MHz analysis bandwidth
• Segmented sweep for up to 32 discontinuous spans in one sweep
• Rugged and portable for lab grade performance in the field
• 5 minute warm-up to guaranteed measurement accuracy
• Configuration Selections
• Standard express analyzer E4402B-STD for faster delivery time, includes options AYX, BAA
• Standard express analyzer with tracking generator E4402B-STG for faster delivery time, includes options 1DN, AYX, BAA
• Custom configuration for maximum flexibility with standard delivery time
