The ABB PRO10/T Relay Test Kit is used to test, programme, and read the parameters of the traditional protection units that are fitted with the legacy Tmax, Isomax, and Emax low voltage circuit-breakers made by ABB SACE. The ABB SACE PRO10/T is also capable of carrying out two different types of tests, automatic and manual.

Specification:
Model: PR010/T
Functionality: Testing, programming, and reading of protection units
Supported Circuit Breakers: ABB Sace Tmax, Isomax, Emax low-voltage series
Test Types: Automatic and manual tests including trip, hardware, and software functions
Trip Test Method: Performed via SACE TT1 unit

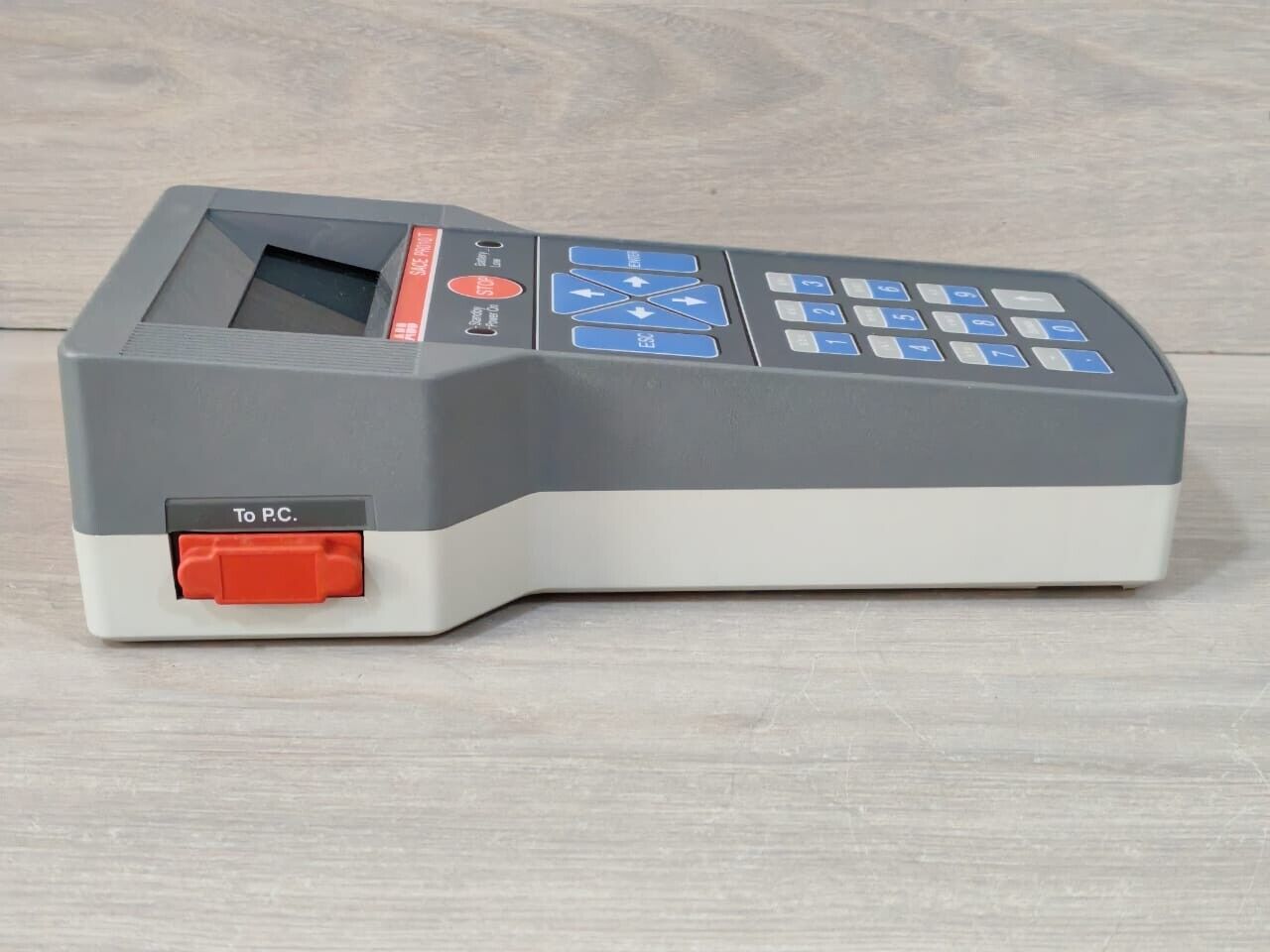

Communication: RS232 port for saving and downloading test reports
Power Supply: Built-in rechargeable batteries and external power supply (100–240 VAC, 12 VDC output)
Battery Type: 6x NiMH AA rechargeable batteries, approx. 2 hours test operation
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +70°C
Humidity: Up to 90% non-condensing

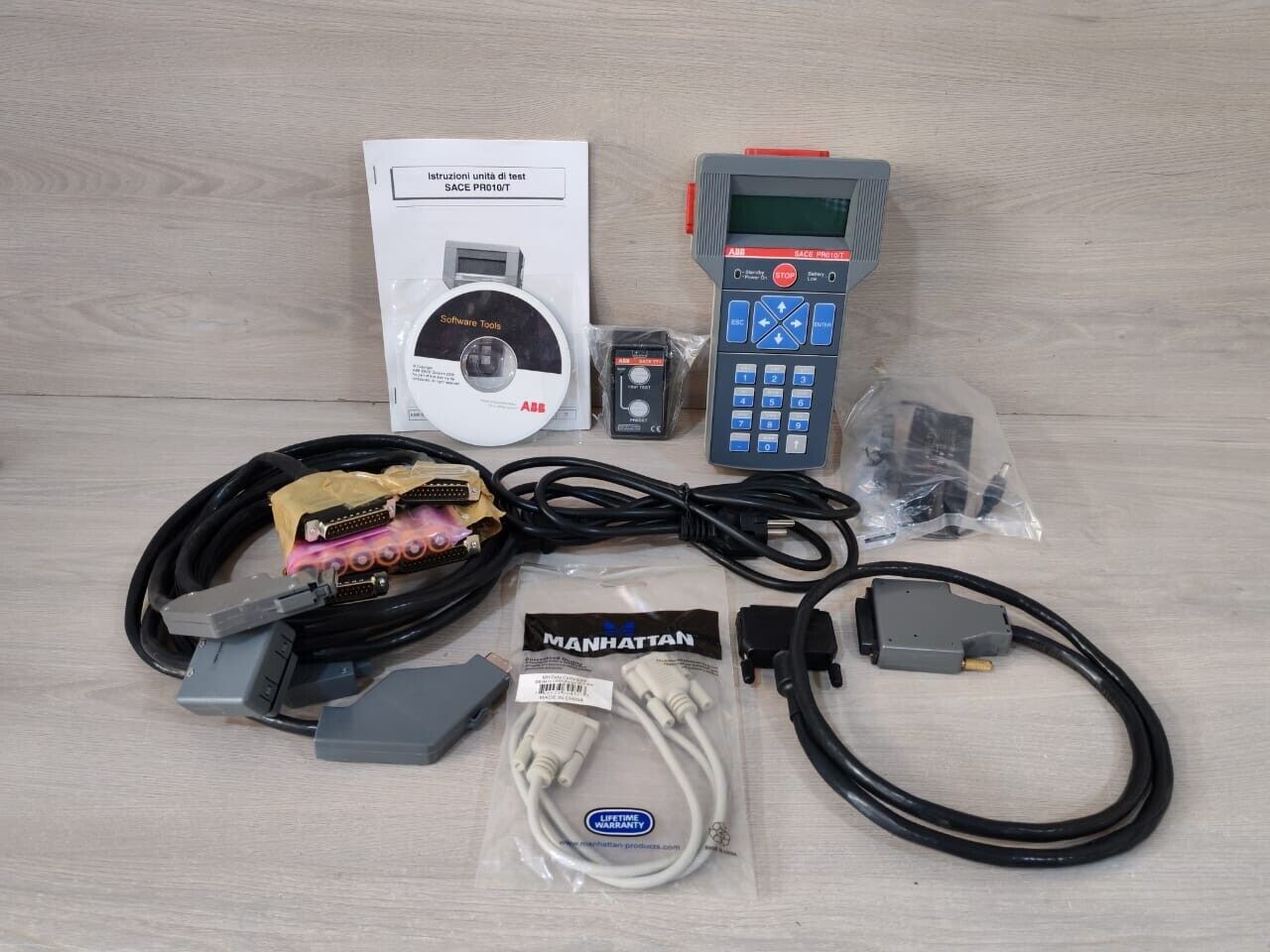

Includes:
1 x ABB Sace PR010/T Protection Tester Unit with Rechargeable Batteries
1 x SACE TT1 Trip Test Unit
1 x AC Adapter with Charger
1 x RS232 Cable

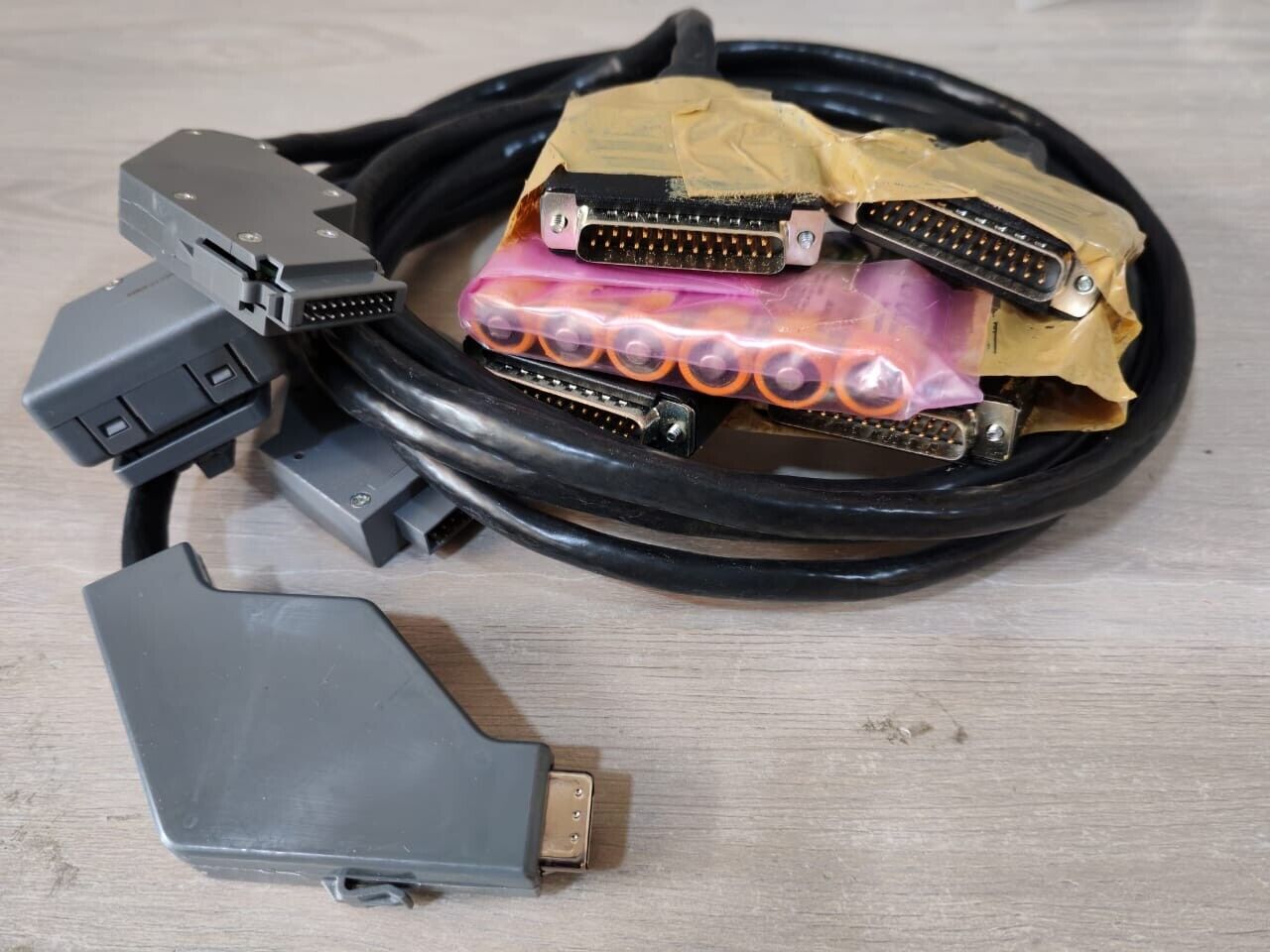

Relay Cables
1 x Cable A
1 x Cable B
1 x Cable C
1 x Cable D
1 x Cable E
1 x Protective Carrying Case
