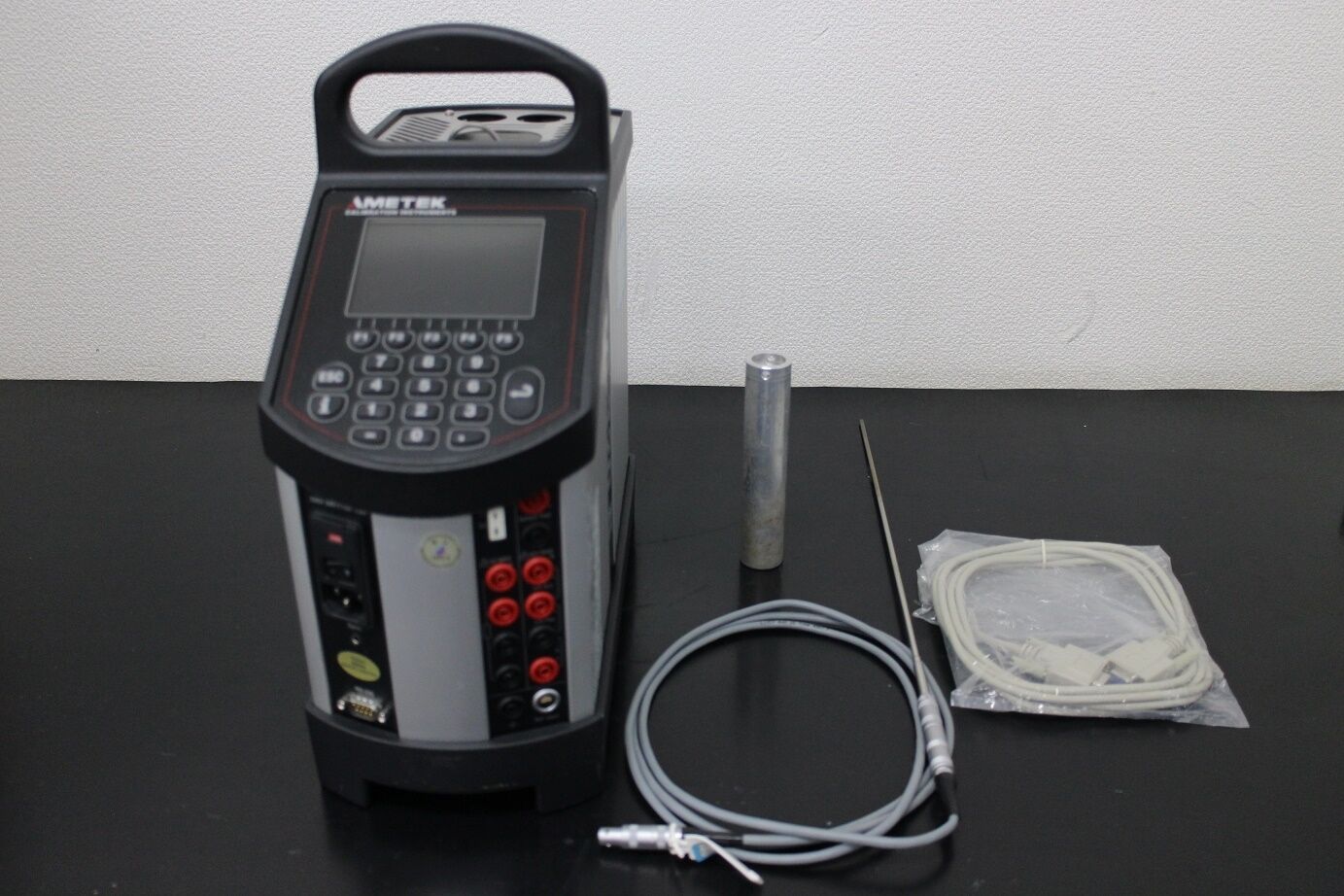

Ametek ATC320B 320degC Temperature Calibrator

Description

Jofra temperature calibrator
Temperature:33-320degC (91-608degF)
Accuracy (with STS Reference Sensor) +0.07degC / +0.13degF
ROFbK-M81-111 Cal 2017/June/30

POWER SUPPLY
Line voltage/frequency
90-127VAC / 180-254VAC 45-65 Hz
Power consumption ATC-155 A/B: 200 VA
ATC-320 / 650 A/B: 1150 VA

RS232 COMMUNICATION INTERFACE
Type of connection 9 pole D-sub male
OTHER CONNECTIONS
Syncronisation relay output 3,5 mm mini jack.

ENVIRONMENT
Ambient operating temperature range 0-40°C / 32-104°F
Storage temperature range -20-50°C / -4-122°F
Humidity range 0-90% RH.
Protection class IP10

READOUT SPECIFICATIONS
Resolution 0.01°C / 0.01°F / 0.01 K
Temperature units °C / °F / K

Accessory

• RS232C cable, Sensor(525824-08), Tube
