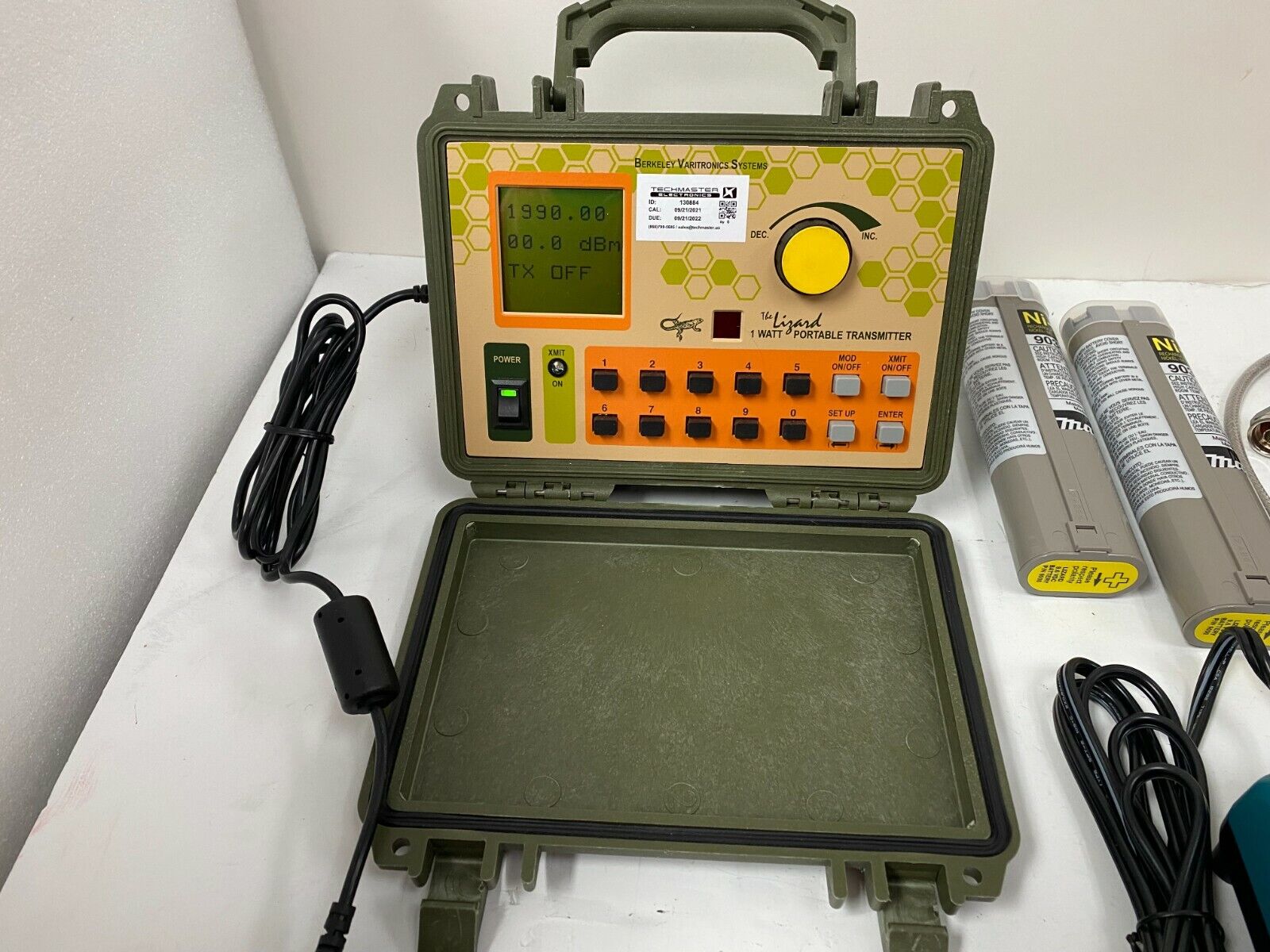

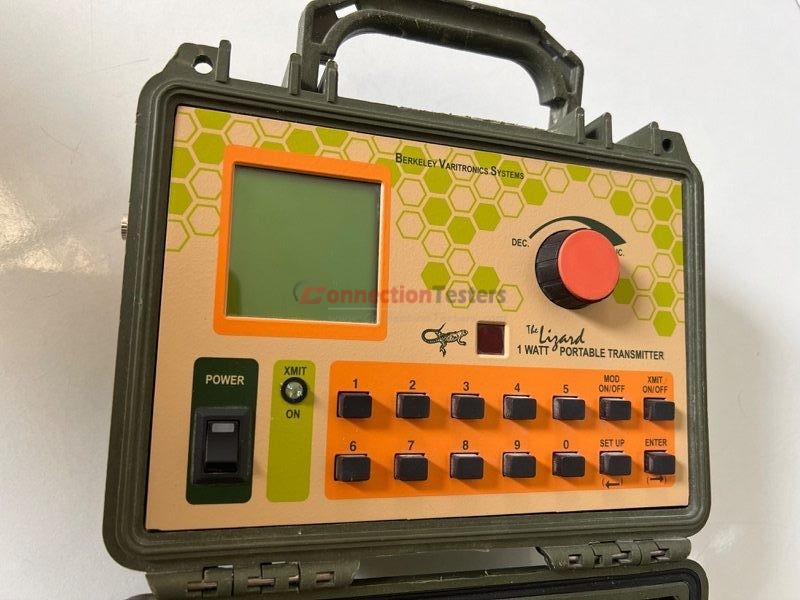

Berkeley Varitronics Lizard V2.3

For Sale Berkeley Varitronics Lizard V2.3. This unit is in excellent condition, has been fully tested and is guaranteed functional.

The Berkeley Varitronics Systems (BVS) Lizard V2.3 is a compact, battery-powered 1-watt Continuous Wave (CW) stimulus transmitter designed primarily for indoor and in-building Distributed Antenna System (DAS) coverage studies and network verification

Core Specifications

• Transmitter Type : CW (Continuous Wave) Stimulus Transmitter.
• Output Power : 1 Watt (30 dBm) maximum per band.
  • Adjustable Range : 0 to 30 dBm (can be extended to -30 dBm with included 30 dB pads).
  • Resolution: 0.1 dB with an accuracy of +0.5dB.
• Frequency Support :
  • Standard Bands : 620–2700 MHz.
  • Optional Bands : 100–620 MHz and 2500–6000 MHz (2.5–6.0 GHz).
  • Step Size : Tunable/custom step sizes available (e.g., 50.0 kHz steps observed on specific V2.3 units).
• Modularity : Dual independent modules allow simultaneous transmission on any two supported frequency bands.

Technical & Physical Details

• Power Supply : AC (110/240 VAC, 50/60 Hz) or DC (19 VDC).
• Battery : Optional integrated rechargeable battery providing approximately 2 to 2.5 hours of operation at full power for both bands simultaneously.
• Display : reflective LCD (VGA resolution or 128×128 depending on specific hardware iteration).
• Enclosure : Ruggedized, water-resistant ABS high-impact case.
• Weight : Approximately 7–8 lbs (3.2–3.6 kg) fully loaded with battery.
• Interface : Front-panel keypad and rotary optical encoder for manual control; USB port for remote PC control (Windows 7/10 compatible).
