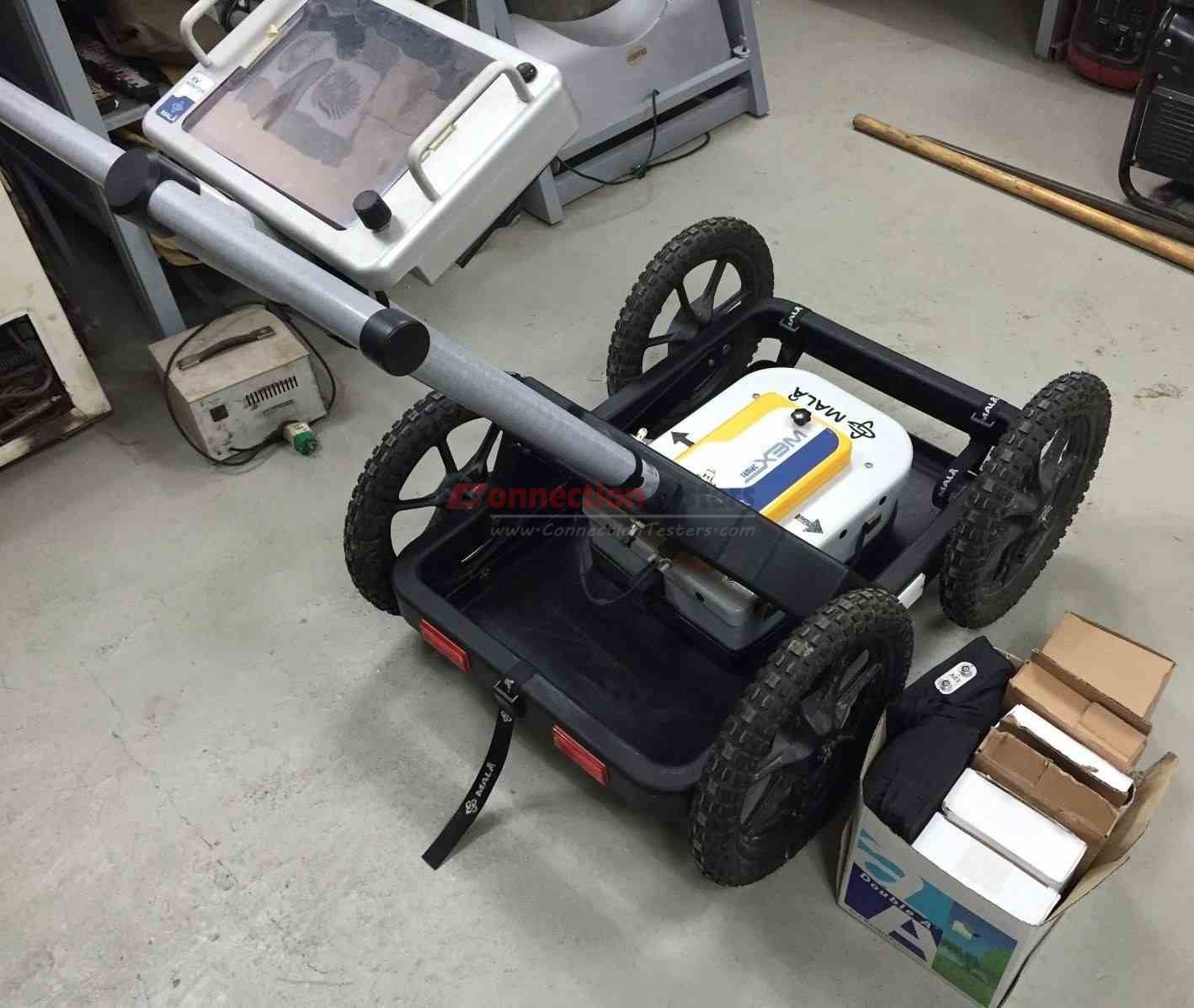

MALA X3M Ground Penetrating Radar w/500Mhz antenna

For Sale MALA X3M Ground Penetrating Radar w/500Mhz antenna. This unit perfect condition and fully tested operating. Come with warranty 90 days.

The MALÅ X3M with a 500 MHz shielded antenna is an integrated, lightweight Ground Penetrating Radar (GPR) system designed for subsurface investigations. It provides high-resolution imaging and an approximate maximum theoretical depth penetration of 5 m (16.4 ft), making it ideal for utility detection, void location, and archaeological surveys.

Key Specifications

• • Center Frequency : 500 MHz
  • Maximum Depth Penetration : Up to 5 m (depending on soil conditions)
  • Pulse Repetition Frequency : 100 kHz
  • System Design : The radar control unit attaches directly to the antenna, eliminating bulky cables.
  • Acquisition Modes : Distance, time, or manual
  • Operating Environment : -20°C to +50°C
  • Power Supply : External 12V DC battery (delivers >10 hours of operating time)
  • Software : Compatible with Ground Vision acquisition software

Key Benefits

• • Compact & Rugged : Field-rugged IP65 housing protects the electronics from harsh conditions and moisture.
  • Minimal Cables : Direct communication with a laptop via a single cable (or wireless/direct mount) reduces wear and tear.
  • Integrated DGPS : Built-in GPS capabilities allow for immediate spatial
  • positioning and mapping.

X3M shielded system Items included :

• • X3M Ethernet version
  • Li-Ion Battery pack 12V
  • Battery bag Li-Ion
  • Li-Ion Battery Charger 12.6V H01110030 incl EU/UK/
  • X3M power cable 4m spiralized
  • Ethernet cable 1.8m black
  • MALÅ USB Software and Manuals Package

Monitor XV Items included :

• • Monitor XV11
  • Li-Ion Battery pack 12V
  • Battery bag Li-Ion
  • Li-Ion Battery Charger 12.6V H01110030 incl EU/UK/
  • Monitor power cable, 1.2m straight
  • 500MHz shielded antenna
  • Rough Terrain Cart (RTC) for 250-800MHz
  • RadExplorer software
