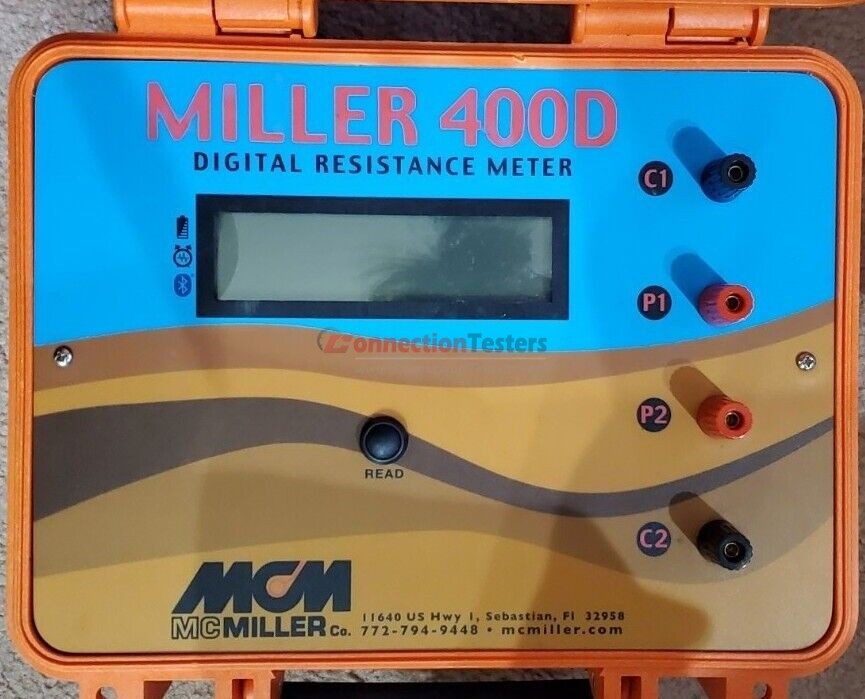

For Sale M.C. MILLER DIGITAL RESISTANCE METER 400D. This unit excellent condition and fully tested. Come with warranty 90 days.
The M.C. Miller 400D is an auto-ranging digital resistance meter used for 2, 3, and 4-electrode soil resistivity, earth resistance, and structure-to-soil resistance testing. It features an IP67 rating, Bluetooth connectivity for data logging, and measures from 0.01 Ω to 10 MΩ using an 82.2 Hz interference-blocking signal.
Core Specifications & Features :
-
- Resistance Range : 0.01 Ω to 10 MΩ (Auto-ranging)
- Operating Frequency : 82.2 Hz
- Interference Rejection : Uses narrow band-pass filters at 82.2 Hz to block stray interference signals in the earth
- Data-Logging : Bluetooth interface allows wireless data acquisition via a
- Bluetooth-enabled PC or PDA
- Compatibility : Integrates with the Universal Rectifiers’ Soil Depth
- Selector/Multi-Pin Cable Harness and features ASTM G57-06 standard testing
- Power Source : Powered by replaceable D-Cell industrial alkaline batteries, providing up to 10,000 single readings
- Enclosure Rating : IP67 for water and dust intrusion (rugged, hard plastic case safe for wet ground)
- Display : High-resolution digital display
