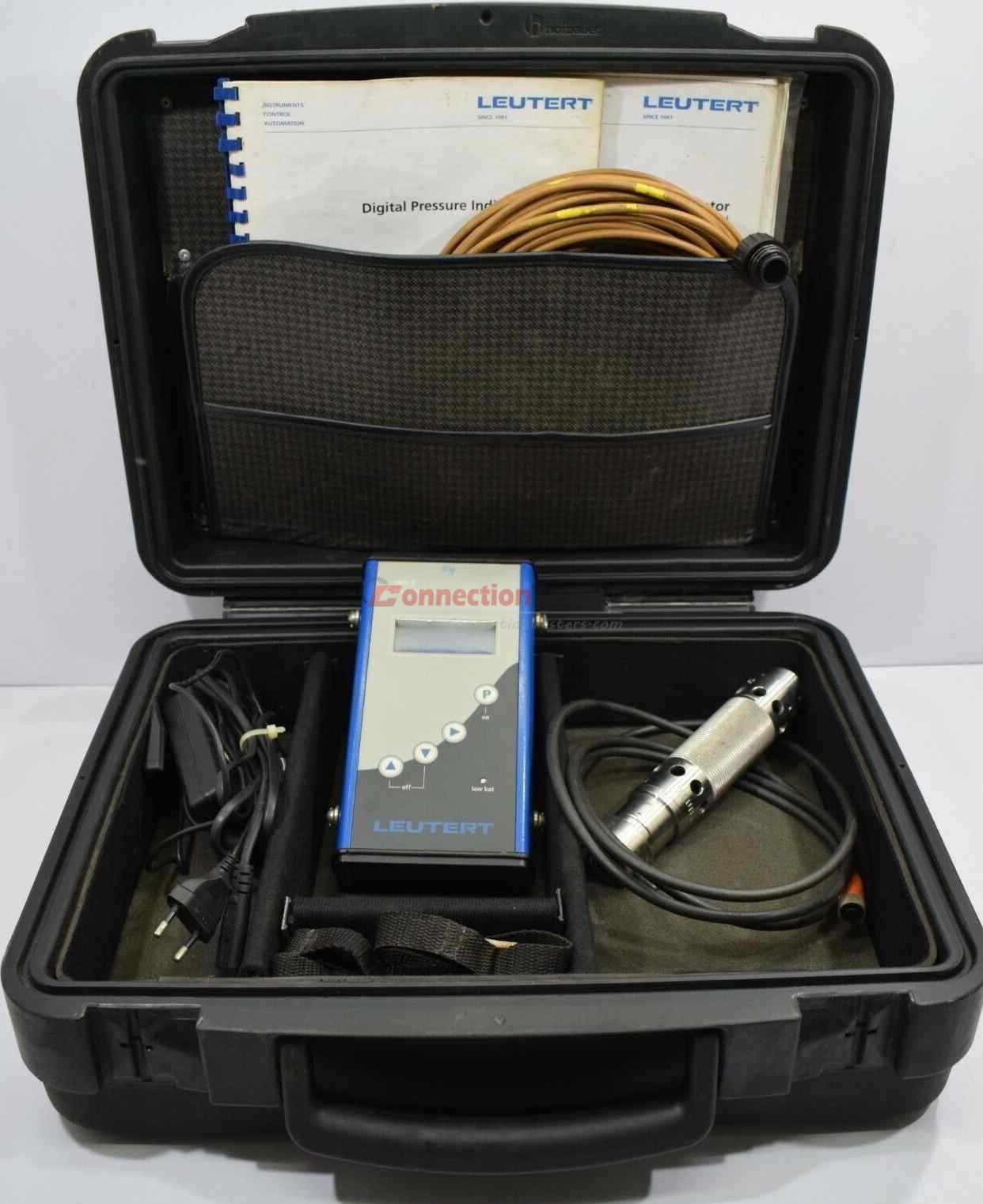

For Sale Leutert DPI 2 Digital Pressure Indicator for 2 & 4 Stork Heavy Diesel Engine. This unit excellent condition and fully tested. Come with warranty 90 days.
The Leutert DPI-2 Electronic Pressure Indicator analyzes dynamic cylinder and injection pressures in large 2- and 4-stroke diesel and gas engines. It features high-precision data acquisition to optimize engine performance and reduce emissions.
Key Technical Specifications
-
- Pressure Range : 0 – 250 bar (Customizable up to 300 bar depending on version)
- Accuracy & Resolution : < 0.5% accuracy; pressure resolution of 0.07 bar
- Speed Range : 35 – 800 rpm for 2-stroke engines; 120 – 1400 rpm for 4-stroke engines
- Sampling & Converter : High sensitivity via a 12-bit A/D converter, with sampling frequencies up to 16.6 kHz
- Memory Capacity : Stores data for up to 9 engines (up to 32 data sets/cylinders)
- Battery : Lasts up to 6 hours continuous use (or over 10 hours for upgraded peak meter variants); charger input 100 – 240 V AC, 50 – 60 Hz
Dimensions and Weight
-
- Handheld Unit : 220 mm × 130 mm × 45 mm, weighing 790 g
- Pressure Sensor : diameter = 60mm, L = 210 mm, weighing 830 g
- Operating Temperatures : Handheld unit rated for 0 – 55°C and the sensor for 0 – 350°C
