The Cognex VC5 Vision Controller directly connects to Cognex industrial GigE cameras and DS1000 series 3D laser displacement sensors. The compact, network-ready VC5 allows for the combination of up to four area scan, line scan or 3D displacement sensors.

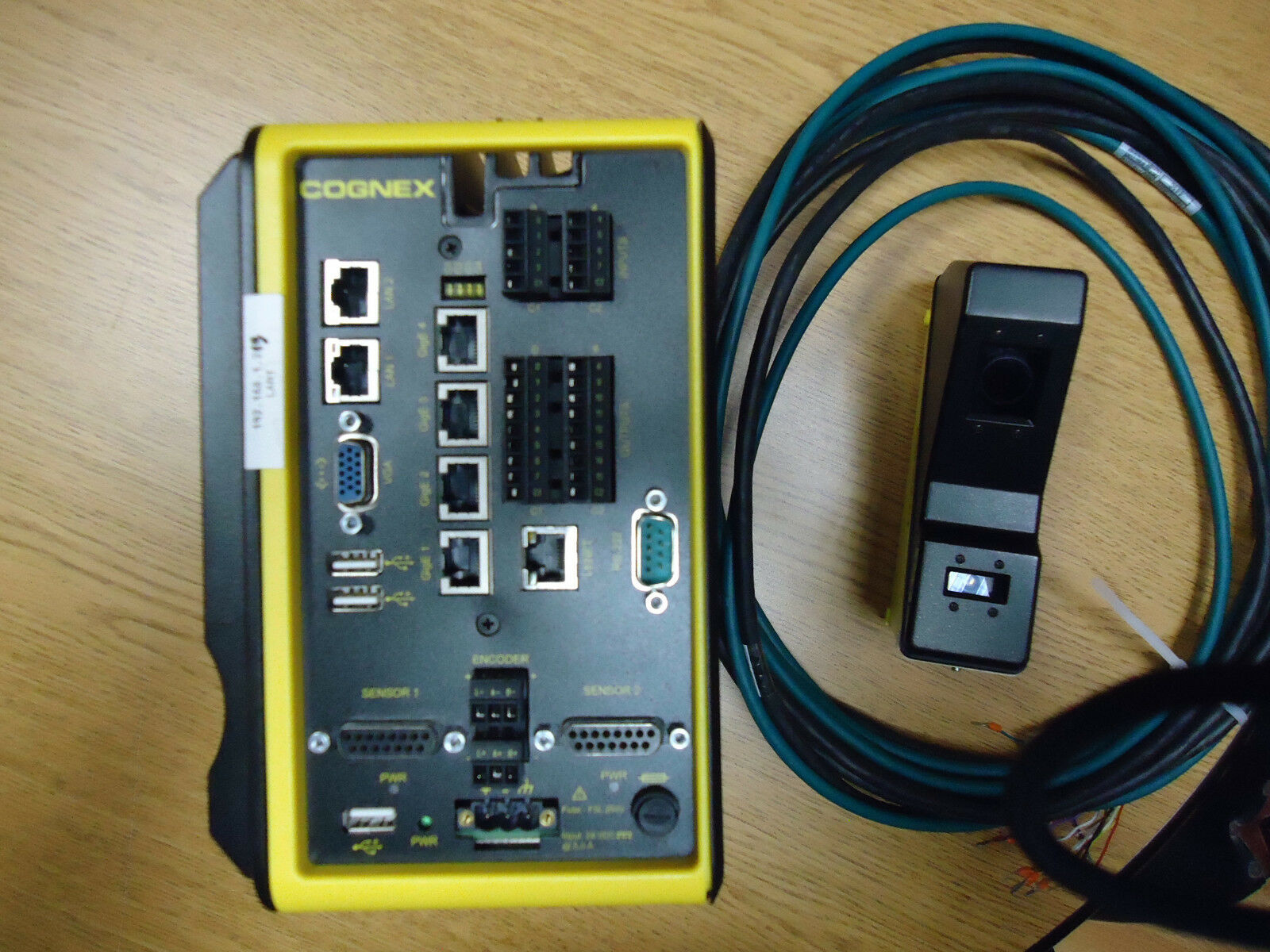

INCLUDES CAMERA (THE DS1300R DISPLACEMENT SENSOR) AND CABLES CCB-84901-1003-02
- Supported Cognex Devices Cognex Industrial GigE cameras, Cognex DS1000 series sensors
- Job Program Memory 120 or 480GB non-volative flash memory, unlimited storage via remote network device
- Image Processing Memory 8GB SDRAM
- Cooling System Fanless design
- Digital Inputs 8 optically isolated discrete inputs
- Digital Outputs 16 optically isolated discrete outputs
- Encoder Inputs 4 non-isolated encoder inputs
- LAN Ports 2 RJ-45 Ethernet ports, 10/100/1000 BaseT IEEE 802.3 TCP/IP Protocol
- GigE Ports 4 GigE Vision compatible ports with Power over Ethernet (PoE)
- I-ENET Port 1 RJ-45 port for Ethernet-based industrial protocol communications
- Sensor Ports 2 DB15 ports that provide power, encoder and trigger connections to Cognex DS1000 series sensors. Each port supplies 24VDC, 500mA maximum.
- VGA Port Analog VGA, DB15 port to connect to monitors up to 1920×1200
- USB Ports 3 host USB 2.0 (480 Mb/sec.) ports for connecting HID devices (mouse, keyboard or mass storage device)
- RS-232 Port 1 RS-232 port for serial communications
- Housing Aluminum die-cast, aluminum sheet metal and injection-molded ABS housing
- Mounting Four bottom and four backside M5 x 0.8 threaded mounting holes. DIN-rail mountable, using the DIN rail accessory or panel mount using 2-piece sheet metal bracket.
- Dimensions 207mm (8.15 in) X 231.9mm (9.06 in) x 133.5mm (5.24 in)
- I/O Terminal Connectors Detachable screw terminals
- Power 24 VDC (±10%), 5 amp (max)
- Operating Temperature 0°C to 40°C (32°F to 104°F)
- Storage Temperature -30°C to 80°C (-22°F to 176°F)
- Humidity 10% – 85%, non-condensing (Operating and Storage)
- Regulatory Compliance CE, FCC, KCC, TÜV SÜD NRTL, RoHS
