JDSU Viavi MTS 4000 4146 Quad SM MM Fiber OTDR

For Sale JDSU Viavi MTS 4000 4146 Quad SM MM Fiber OTDR Module T-BERD 2000. This unit is in excellent condition, has been fully tested.

The Viavi Quad OTDR module offers fast acquisition times, sharp resolution, a multimode dynamic range of up to 26 dB, and a single-mode dynamic range of up to 37 dB for installation and maintenance of fiber optic links. Its integrated light source and power meter, accessible through both OTDR ports (multimode and single-mode), enable users to quickly identify fibers without switching ports and perform a wide range of fiber optic certification tests.
The Quad module’s optical performance, combined with the T-BERD/MTS platform’s comprehensive feature set, ensures testing is done right—the first time.

Key Features

• • Dynamic range up to 37 dB in single mode and 26 dB in multi-mode
  • Four-wavelength versions with 850, 1300, 1310, and 1550 nm and two-wavelength versions with 850 and 1300 nm
  • Integrated continuous-wave (CW) light source and power meter
  • TIA/IEC pass/fail thresholds
  • Propagation delay measurement in multi-mode (TIA-568-C)
  • Optimized for 10 MB to 40 GE testing
  • Certified for Tier 2 site networks
  • Compliant with IEC 61280-4-1 using an external modal controller
  • Ready for SLM, FTTA-SLM, and FTTH-SLM smart optics application software

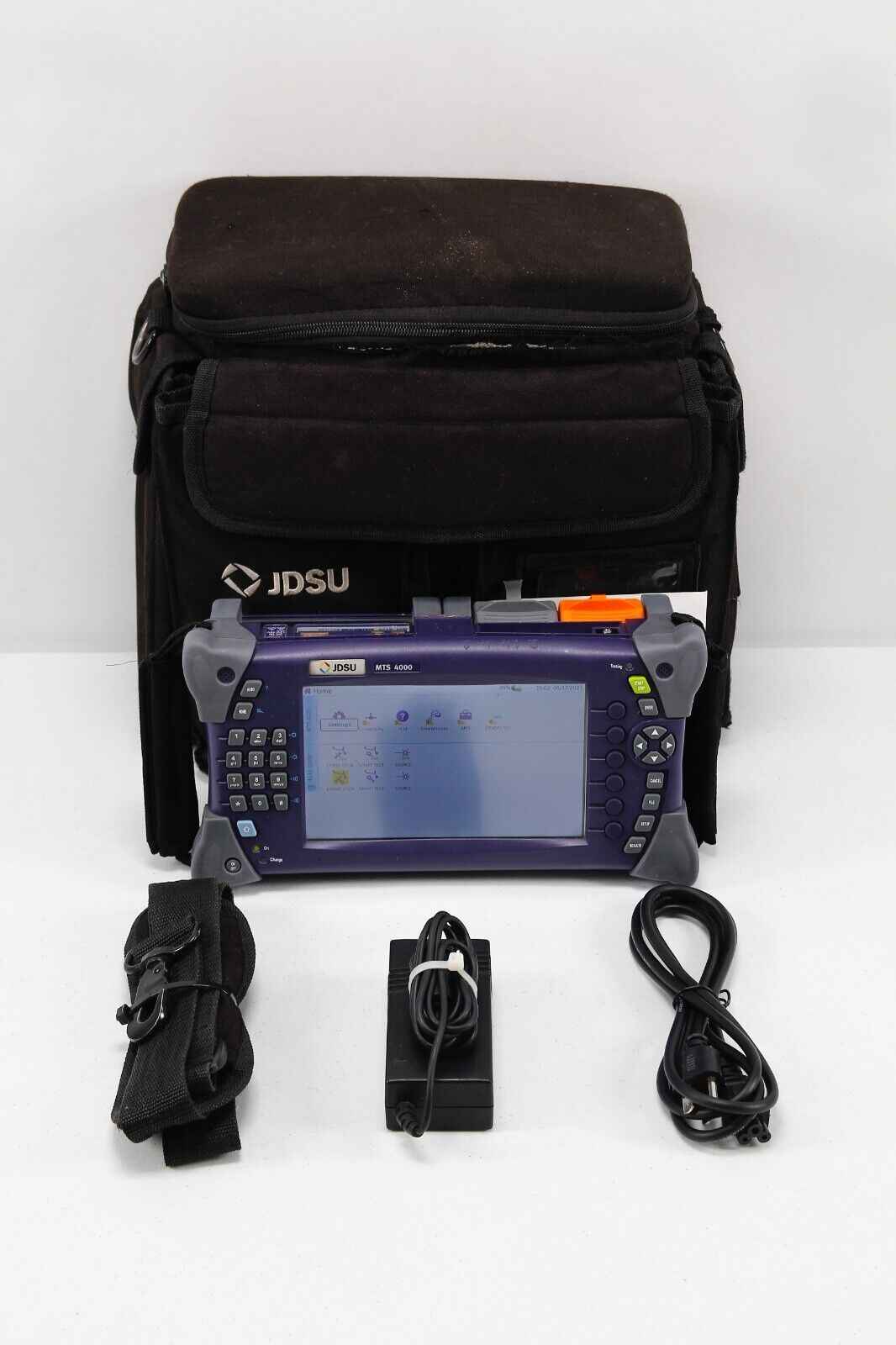

Items Included :

• • JDSU Viavi MTS 4000 4146 Quad unit
  • AC Adapter/Charger
  • Power cord for charger
  • Strap for unit
  • Carrying Case for unit
