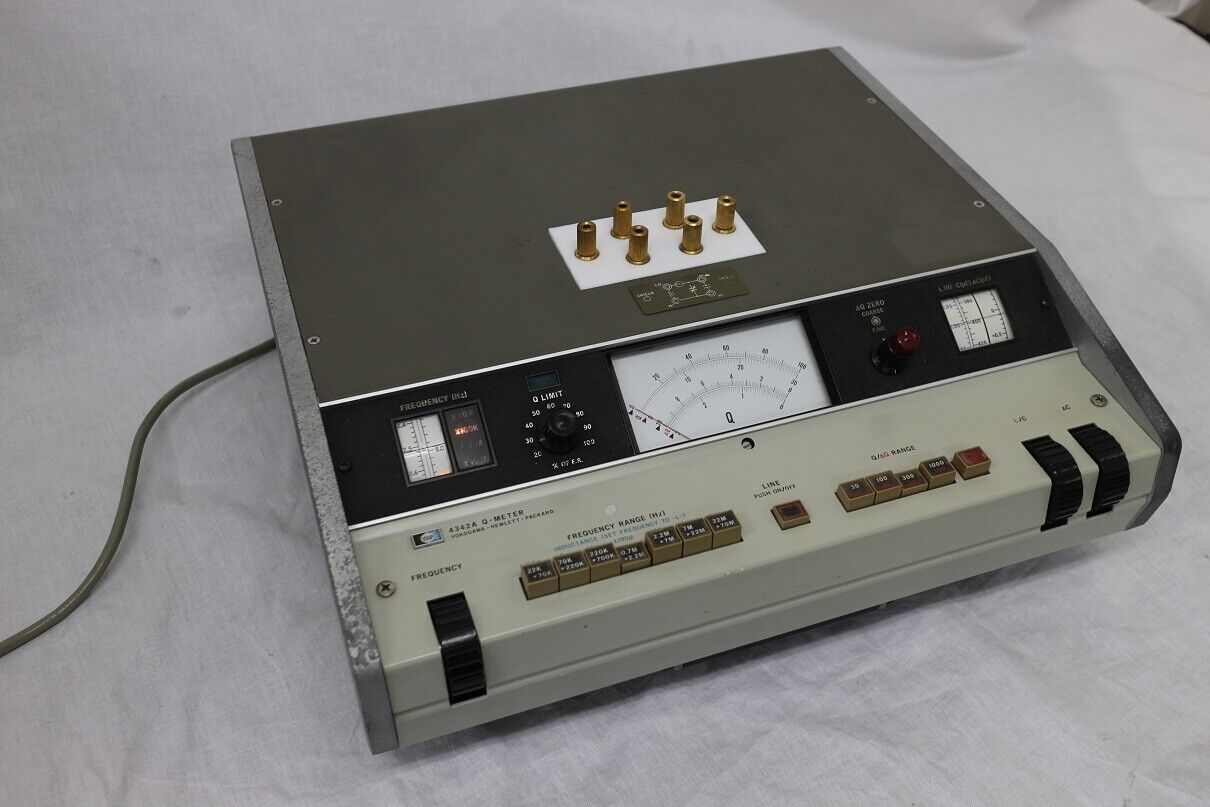

HP 4342A Q Meter

For Sale HP 4342A Q Meter. Function tested the unit and found it to be fully functional with excellent cosmetic condition.

Description

• • RF Range:22kHz-70MHz in 7band,
  • Q Range:5-1000 in 4range, Accuracy:+-7-+-20%
  • DeltaQ 0-100 in 4range incre 20-100/5-30
  • L Range:0.09uH-1.2H in 7range Accuracy:+-3%,
  • C Range:25-470pF Accuracy:+-1% or 1pF
  • FreqMonitor Output 170mV/50ohms
  • Q Analog Output 0-1V /1kohm
  • Over Limit output Relay contact
  • Over Limit Display Time 1s/continue
  • AC 115/220V 40VA
  • 138(H)-425(W)-414(D)mm,14kg

Accessory

• • Power cord
