Digitrak SE Horizontal Directional Drilling Locating System With Remote Display

Condition: Used
Brand: Digitrak

Digitrak SE Horizontal Directional Drilling Locating System With Remote Display and all accessories seen in photogaraphs. Unit is used and in good condition with some signs of previous use.

Features:
The DigiTrak SE system provides the best in affordablehorizontal directional drilling locating. Advanced technology and intuitive, icon-driven menus provide a level of productivity unmatched in the industry. In addition to the basic locating features of directional tracking and depth, the SE includes the advanced features of predicted depth, off-track locating when direct walkover is impossible, and left/right remote steering to navigate the drill head easily even when obstacles prevent walkover tracking.

Roll offset allows the transmitter’s 12 clock positions to be electronically compensated to match that of the drill head. An update meter on the SE shows the data transfer rate, which clearly shows when you are in an area of interference or reaching the range limit of the transmitter.

Remote Display
The DigiTrak SE display (SED) is designed to be used only with an SE receiver. It provides the drill rig operator with information from the receiver about the depth, orientation, and status of the transmitter.

The SED remote is powered by a DCI NiMH or lithium-ion battery pack and is operated using a push button to turn on and off the unit, to open menus, to select menu items, and to adjust the screen contrast. This section explains these operations and provides instructions for reading the screen displays.

Highlights:
Intuitive Ball-in-the-Box locating
Left/right remote steering
Roll/pitch update meter
Roll offset
Icon-driven menus

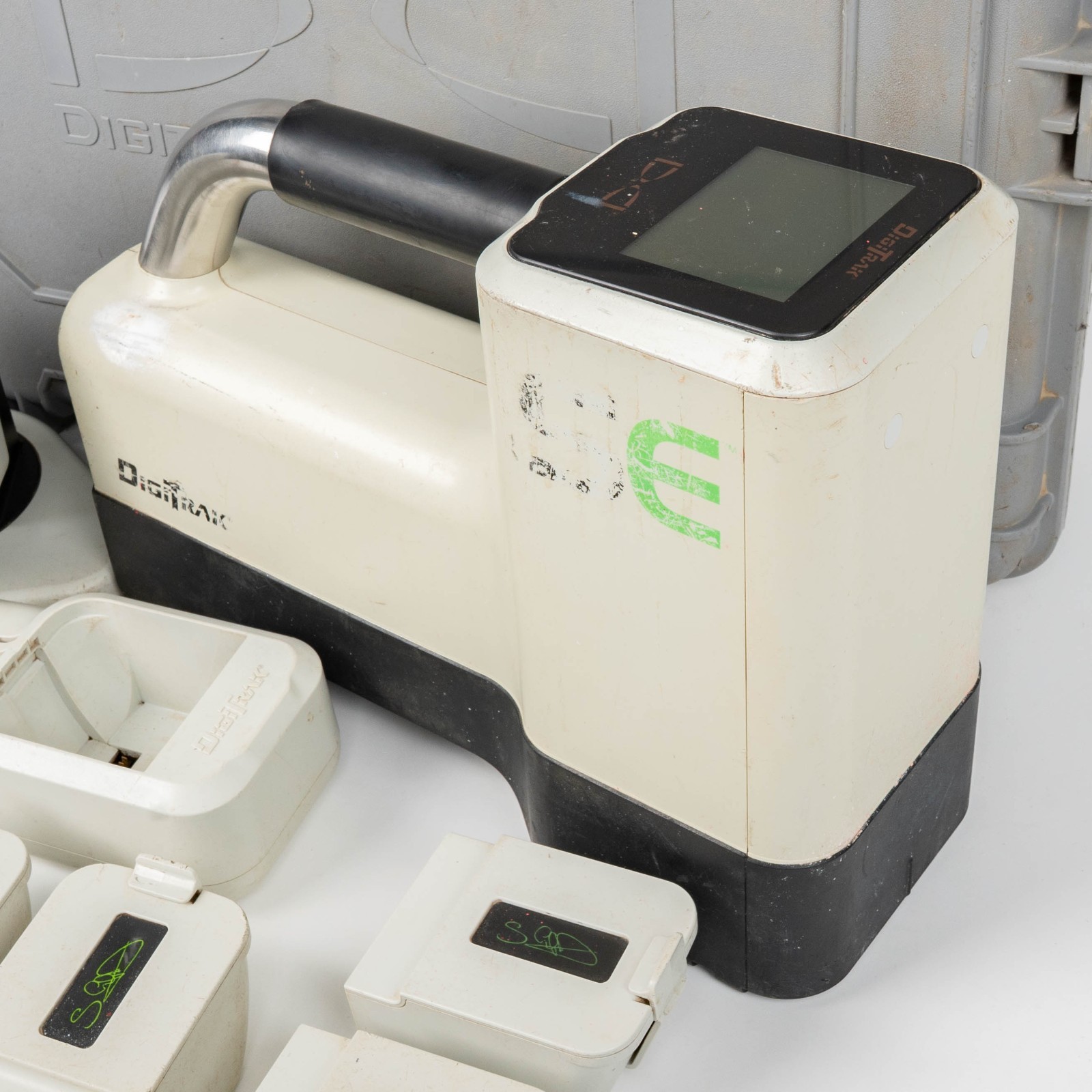

Receiver Specifications
Model Number: SER
Receiving Frequency: 12 kHz
Telemetry Channels: 4
Telemetry Range: 305 m
Power Source: NiMH battery pack
Battery Life: 5–7 hrs
Battery Charger – Input: 100–240 VAC, 50/60 Hz, 0.35 A
Battery Charger – Output: 25 VDC, 0.7 A maximum
Functions: Menu-driven
Controls: Trigger switch
Graphic Display: LCD
Audio Output: Beeper
Operating Temperature: -10 to 65° C
Accuracy: ±5% absolute
Dimensions: 27.94 x 13.97 x 38.1 cm
Weight (with battery): 3.5 kg

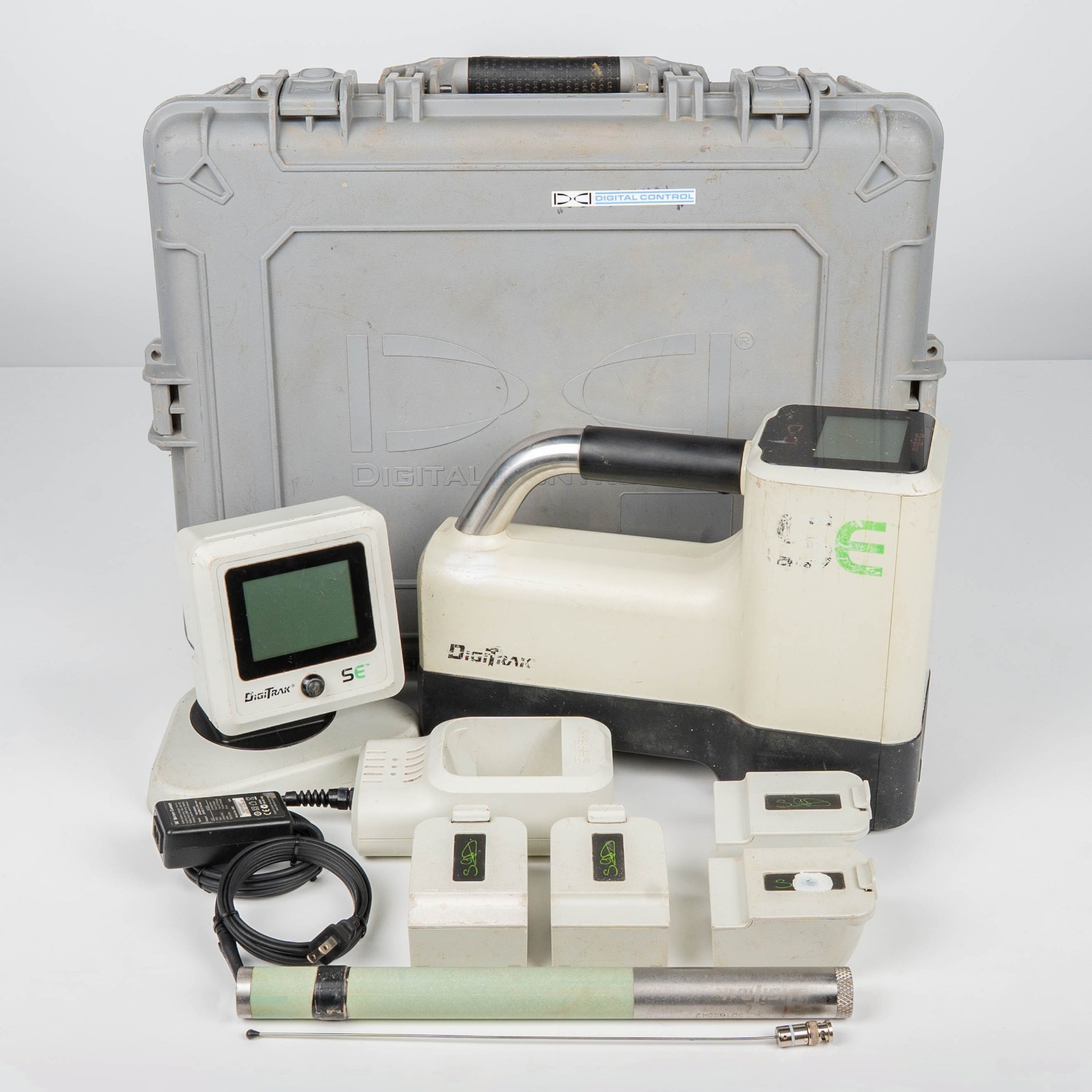

Package Includes:
DigiTrak SE Receiver Digitrak

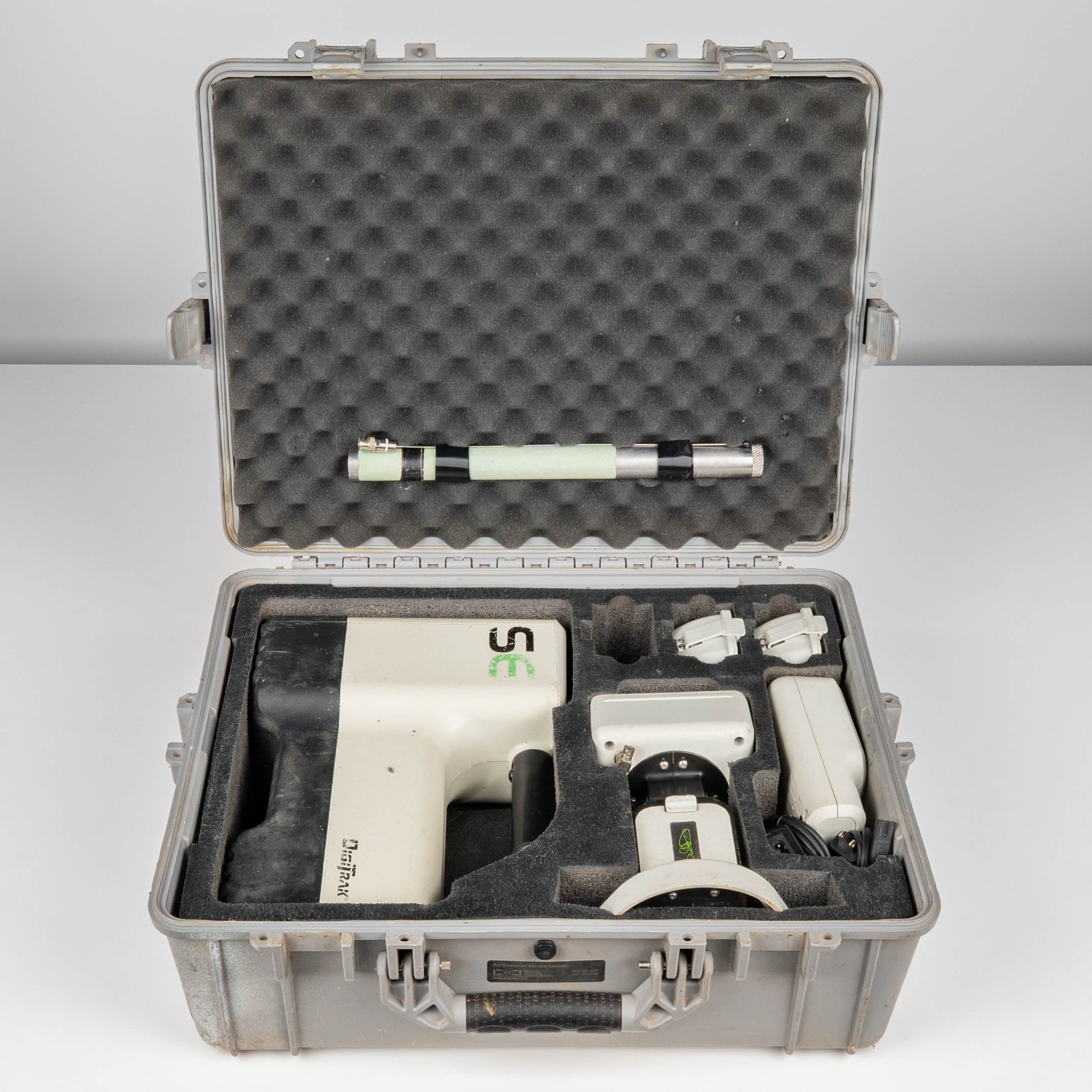

Hard Transport Case
4 x NiMH Battery Pack
Transmitter
Antenna
Battery Charger with Power Supply Charger
AC Power Cable
Digitrak SE Remote Display
